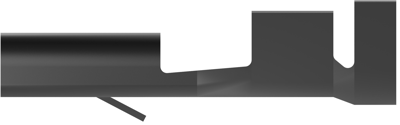

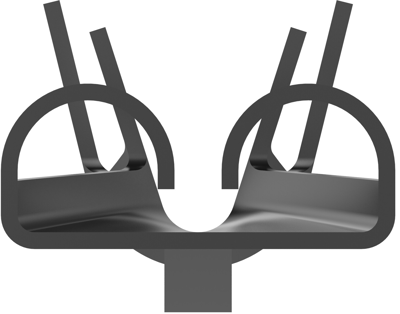

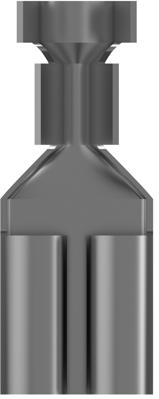

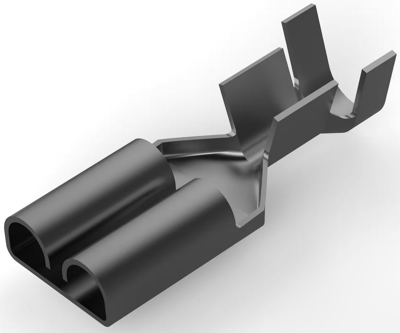

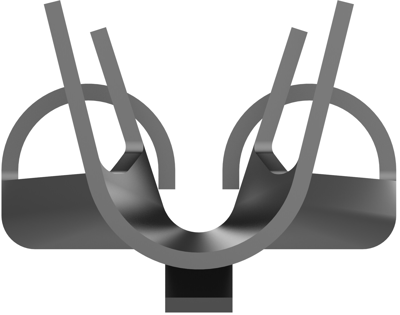

6-160448-5 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, tin-plated, 6-160448-5
Unit Price (€ / pc.)
0.1107 € *
Available: 0 pcs.
Available in 5 Days: 5,000 pcs.
Leadtime: 23 Weeks **
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
5000 pcs.
0.1107 €
10000 pcs.
0.1012 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat receptacle, 6-160448-5, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 250 V, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.33 mm, Wire Size: 17 – 13 AWG, Wire Size: 1.03 – 2.62 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 5000, Packaging Method: Strip/Reel, Comment: "According to DIN 46340, Part 3",Chamfered,Without Dimple
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 17 to 13 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 19.2 mm | |
| Cable cross-section | 1.03 to 2.62 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
