60635-1 | AMP

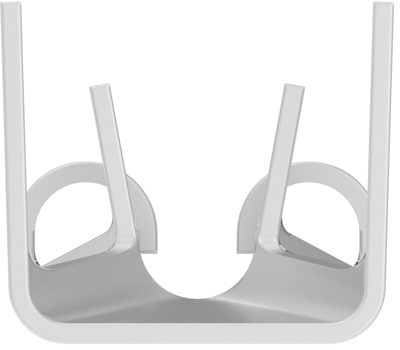

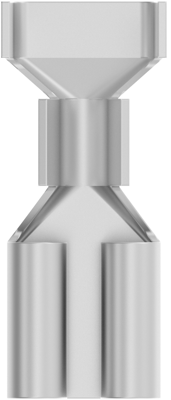

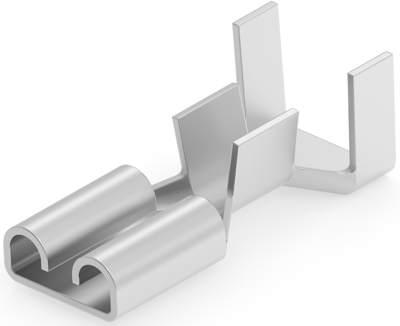

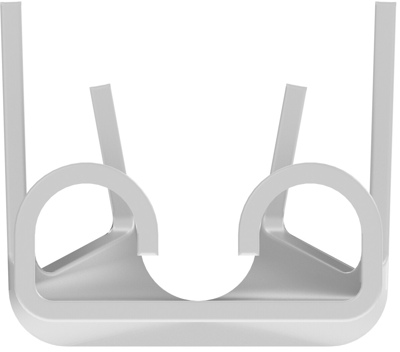

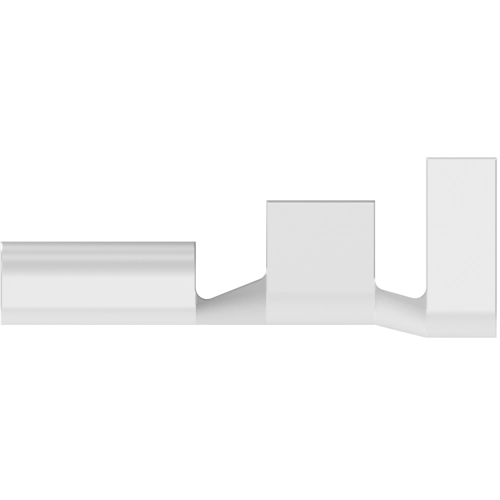

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.08 to 5.26 mm², AWG 14 to 10, brass, tin-plated, 60635-1
Unit Price (€ / pc.)
0.0869 € *
Available: 0 pcs.
Leadtime: 27 Weeks **
Total Price:
1,042.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
0.0869 €
Quick disconnect, 60635-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.43 mm, Wire Size: 14 – 10 AWG, Wire Size: 2.08 – 5.26 mm², Wire Size: 9600 CMA, Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 6000, Quick Disconnect Packaging Method: Strip/Reel, Line: Premier
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 14 bis 10 | |
| Geeignet für | 6,35 x 0,81 mm | |
| Isoliert | No | |
| Leiterquerschnitt | 2,08 bis 5,26 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Ursprungsland | GB |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
