62026-1 | AMP

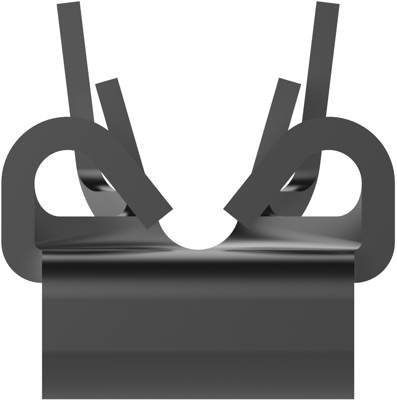

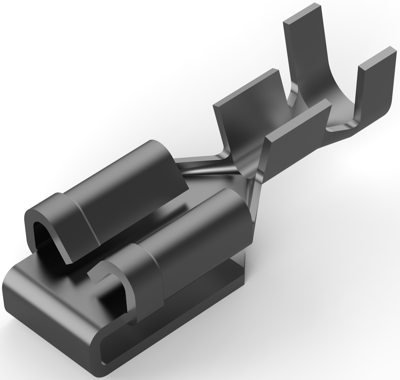

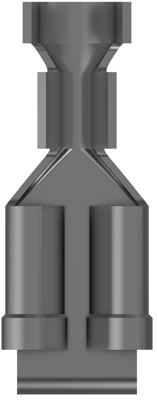

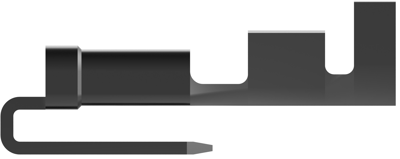

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, brass, tin-plated, 62026-1
Unit Price (€ / pc.)
0.1845 € *
Available: 0 pcs.
Available in 5 Days: 10,500 pcs.
Leadtime: 15 Weeks **
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
3500 pcs.
0.1845 €
7000 pcs.
0.1749 €
*incl. VAT plus shipping costs
**Subject to prior sale
Flat receptacle, 62026-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Tab & Receptacle, Terminal & Splice Type: Tab & Receptacle, Terminal Orientation: Piggyback, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.36 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Mating Tab Width: 4.75 mm, Mating Tab Thickness: 0.51 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 3500, Packaging Method: Strip/Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 20 to 16 | |
| Suitable for | 4.75 x 0.51 mm | |
| Isolated | No | |
| Length | 15.62 mm | |
| Cable cross-section | 0.51 to 1.31 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
