62056-3 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 3.31 mm², AWG 18 to 12, brass, tin-plated, 62056-3
Order No.: 34P8637
EAN: 4099889625073
MPN:
62056-3
Unit Price (€ / pc.)
0.1821 € *
Available: 0 pcs.
Leadtime: On Request **

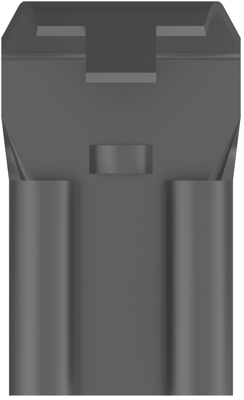

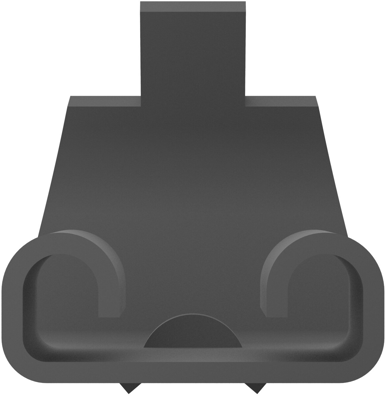

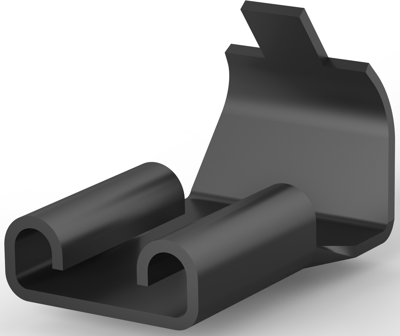

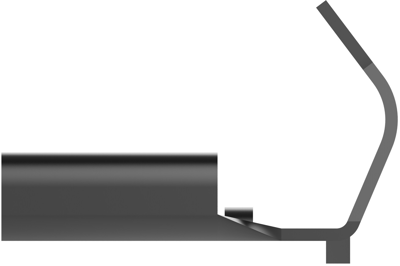

Flat receptacle, 62056-3, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: Tab-Lok, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 12 AWG, Wire Size: 0.82 – 3.31 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 4000, Packaging Method: Strip/Reel, Comment: Right hand. Reverse reel.
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 18 to 12 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 17.02 mm | |
| Cable cross-section | 0.82 to 3.31 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | SI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
