62092-1 | AMP
Uninsulated flat plug sleeve, 7.92 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, 62092-1
Unit Price (€ / pc.)
0.0964 € *
Available: 0 pcs.
Available in 5 Days: 8,000 pcs.
Leadtime: 26 Weeks **

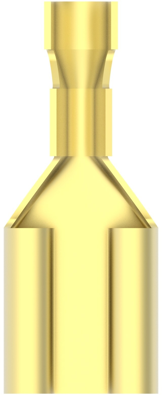

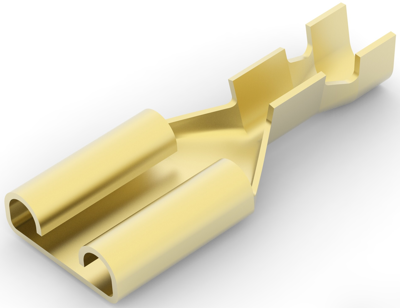

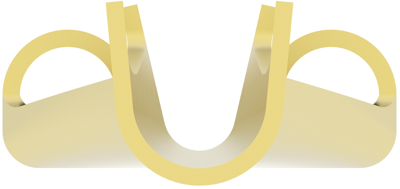

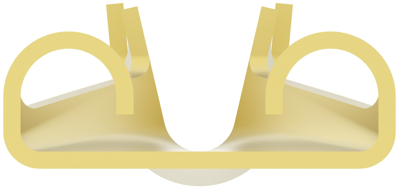

Flat receptacle, 62092-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 7.92 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 8000, Packaging Method: Strip/Reel, Line: Premier
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 18 to 14 | |
| Suitable for | 7.92 x 0.81 mm | |
| Isolated | No | |
| Length | 22.86 mm | |
| Cable cross-section | 0.82 to 2.08 mm² | |
| Material | brass |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
