63301-1 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 1.65 mm², AWG 22 to 15, steel, nickel-plated, 63301-1
Unit Price (€ / pc.)
0.1499 € *
Available: 0 pcs.
Leadtime: On Request **

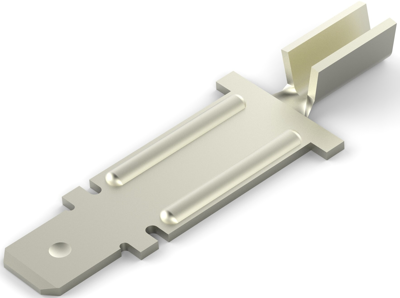

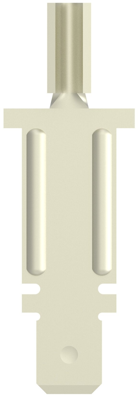

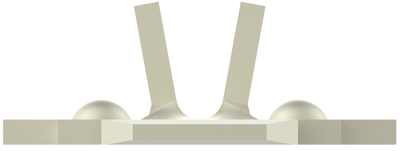

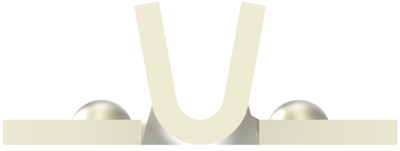

Flat receptacle, 63301-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Nickel, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Steel, Crimp Type: F-Crimp, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.81 mm, Wire Size: 22 – 15 AWG, Wire Size: 0.32 – 1.65 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 250 °C, UL Rating: Listed, Packaging Quantity: 3000, Packaging Method: Strip/Reel, Comment: H : Dimple
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 15 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 38.1 mm | |
| Cable cross-section | 0.32 to 1.65 mm² | |
| Material | steel, nickel-plated |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
