63442-1 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.51 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 63442-1
Unit Price (€ / pc.)
0.1178 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
1,413.72 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
0.1178 €

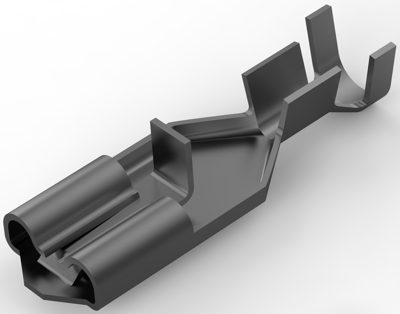

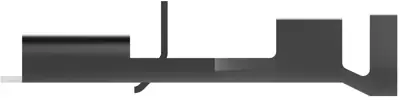

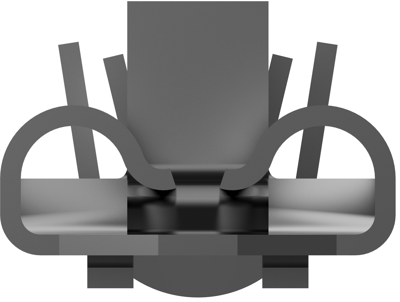

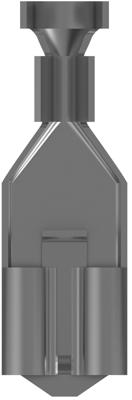

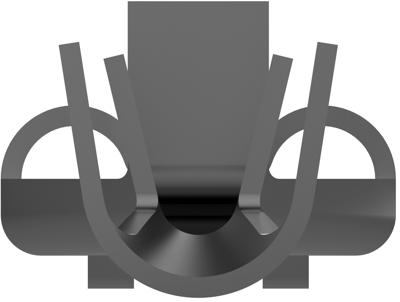

Flat receptacle, 63442-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.51 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 6000, Packaging Method: Strip/Reel
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 18 bis 14 | |
| Suitable for | 6,35 x 0,51 mm | |
| Isolated | No | |
| Length | 22.5 mm | |
| Cable cross-section | 0,82 bis 2,08 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85389091 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
