63467-1 | AMP

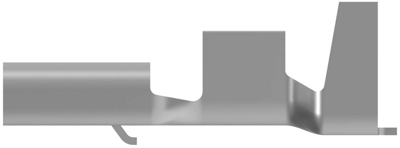

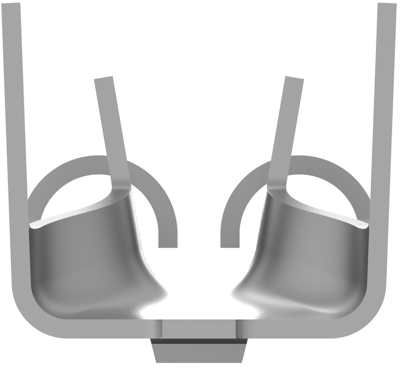

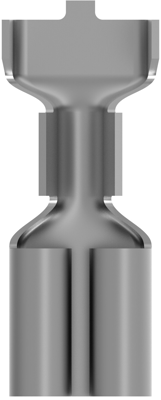

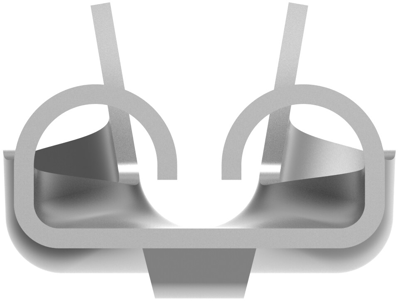

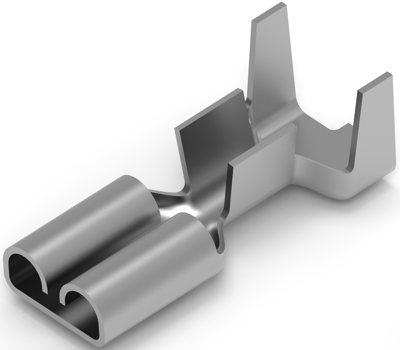

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.08 to 5.26 mm², AWG 14 to 10, brass, tin-plated, 63467-1
Unit Price (€ / pc.)
0.1178 € *
Available: 0 pcs.
Available in 5 Days: 12,000 pcs.
Leadtime: 27 Weeks **
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.1178 €
12000 pcs.
0.1071 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 63467-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 14 – 10 AWG, Wire Size: 2.08 – 5.26 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 6000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 14 to 10 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 19.56 mm | |
| Cable cross-section | 2.08 to 5.26 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
