63481-1 | AMP
Uninsulated flat plug sleeve, 0.41 to 1.65 mm², AWG 21 to 15, brass, tin-plated, 63481-1
Order No.: 34P6427
EAN: 4099889619201
MPN:
63481-1
Unit Price (€ / pc.)
0.2511 € *
Available: 0 pcs.
Leadtime: On Request **

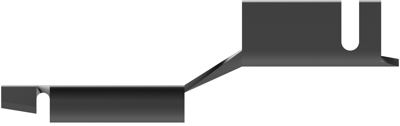

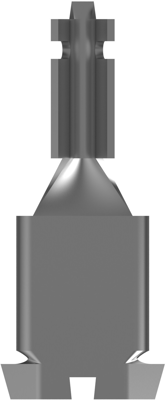

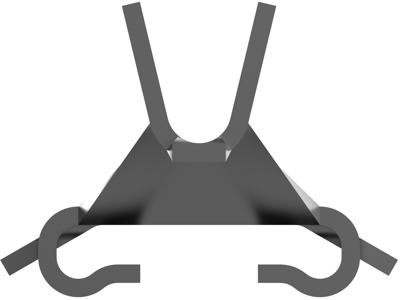

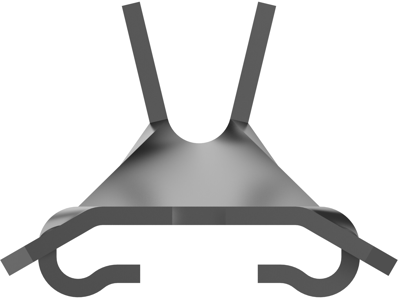

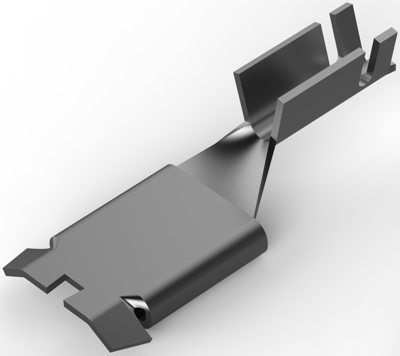

Flat receptacle, 63481-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.46 mm, Wire Size: 21 – 15 AWG, Wire Size: 0.41 – 1.65 mm², Packaging Quantity: 3000, Packaging Method: Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 21 to 15 | |
| Isolated | No | |
| Length | 26.16 mm | |
| Cable cross-section | 0.41 to 1.65 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
