63837-1 | AMP

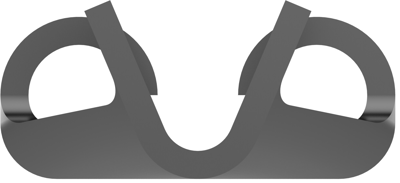

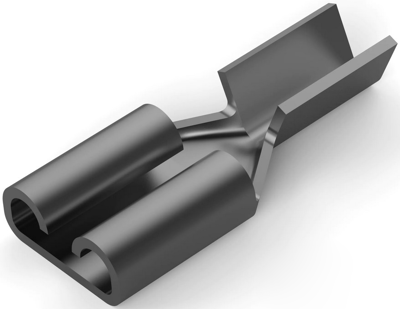

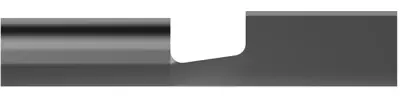

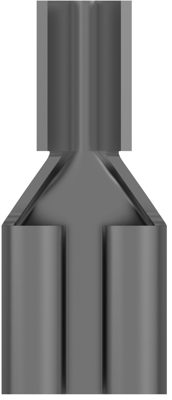

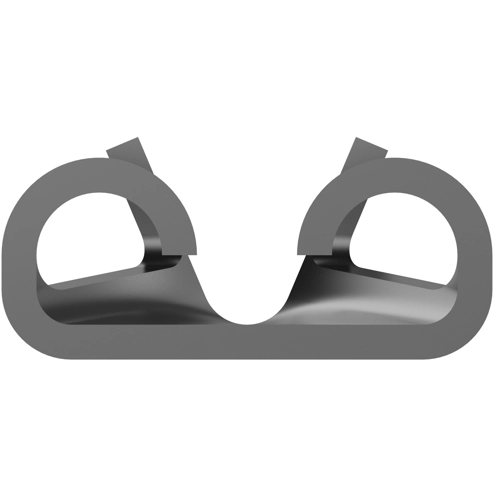

Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.12 to 0.32 mm², AWG 26 to 22, brass, tin-plated, 63837-1
Unit Price (€ / pc.)
0.0274 € *
Available: 0 pcs.
Available in 5 Days: 150,000 pcs.
Leadtime: 27 Weeks **
Total Price:
0.03 € *
Price list
Quantity
Price per unit*
50000 pcs.
0.0274 €
100000 pcs.
0.0262 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 63837-1, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.25 mm, Wire Size: 26 – 22 AWG, Wire Size: 0.12 – .32 mm², Wire Size: 254 – 642 CMA, Quick Disconnect Mating Tab Width: 2.8 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 105 °C, UL Rating: Listed, Packaging Quantity: 50000, Quick Disconnect Packaging Method: Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 26 to 22 | |
| Suitable for | 2.8 x 0.51 mm | |
| Isolated | No | |
| Length | 8.31 mm | |
| Cable cross-section | 0.12 to 0.32 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
