63854-2 | AMP

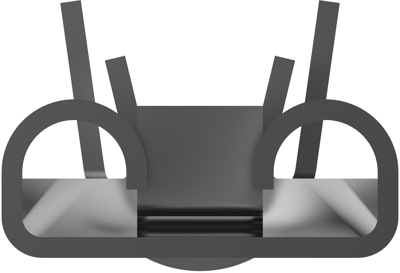

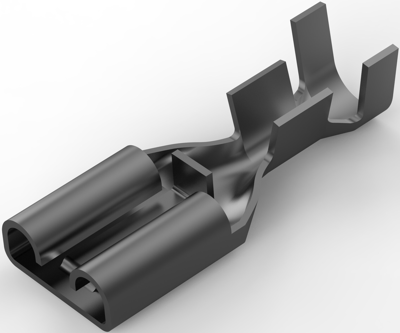

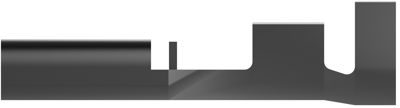

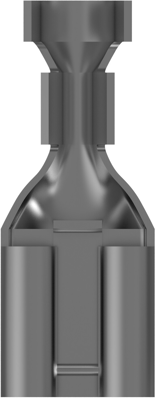

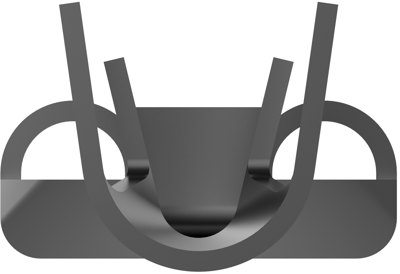

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 63854-2
Unit Price (€ / pc.)
0.1226 € *
Available: 0 pcs.
Leadtime: On Request **
Quick disconnect, 63854-2, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 10000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 18 to 14 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 19.58 mm | |
| Cable cross-section | 0.82 to 2.08 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
