63920-1 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.8 mm, AWG 27 to 23, brass, tin-plated, 63920-1

Order No.: 72P0608
MPN:
63920-1
Series: MAG-MATE

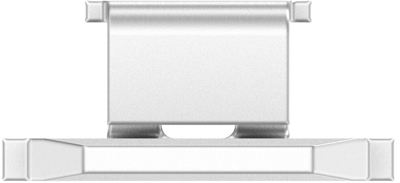

63920-1 AMP Receptacles Image 1

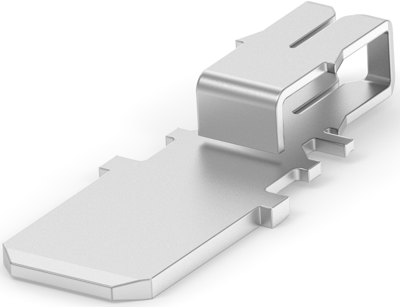

63920-1 AMP Receptacles Image 2

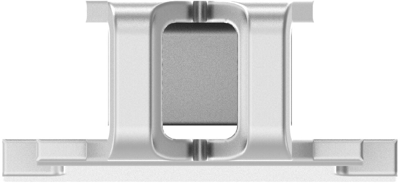

63920-1 AMP Receptacles Image 3

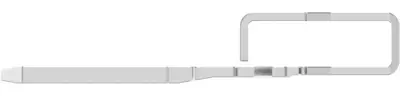

63920-1 AMP Receptacles Image 4

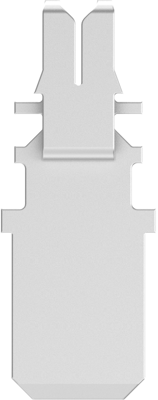

63920-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2225 € *
Available: 0 pcs.
Available in 5 Days: 45,000 pcs.
Leadtime: 22 Weeks **
Total Price:
1,668.98 € *
Price list
Quantity
Price per unit*
7500 pcs.
0.2225 €
15000 pcs.
0.2178 €
*incl. VAT plus shipping costs
**Subject to prior sale

Magnet wire terminal, 63920-1, AMP

The 63920-1 is a magnet wire high speed terminal, fully automated and integrated system that provides uniform terminations reliably at the lowest possible applied cost. Clean metal-to-metal interface produces stable, gas-tight electrical terminations free of oxides and other contaminants

This product inserter cuts the terminals from the strip and places the terminals over the magnet wire into the plastic cavities. During this operation, small stripping shoulders in the IDC slot remove the film insulation from the magnet wire.

Features

  • Eliminates need for pre-stripping conductors
  • Excess magnet wire is automatically trimmed during the termination process
  • Simultaneously terminates two magnet wires of the same size in one terminal

Applications

  • Motor windings and connections
  • Coil connections
  • Transformer windings and connections
  • Lighting ballasts
  • Power supplies
Technical specifications
Anschluss Schneidklemmanschluss
Ausführung Flachsteckhülse
AWG-Leiterquerschnitt AWG 27 bis 23
Geeignet für 6,35 x 0,8 mm
Isoliert No
Länge 18.97 mm
Material Messing, verzinnt
Logistics
Ursprungsland US
Zolltarifnummer 85389099
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
