640417-2 | AMP

Name: Uninsulated flat plug sleeve, 6.35 x 0.41 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 640417-2
Brand: AMP
SKU: 34P7702
Price: 0.13 EUR
Availability: OutOfStock

Uninsulated flat plug sleeve, 6.35 x 0.41 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, tin-plated, 640417-2

Order No.: 34P7702

EAN: 4099889619621

MPN:

640417-2

Series: FASTIN-FASTON

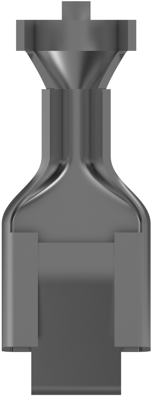

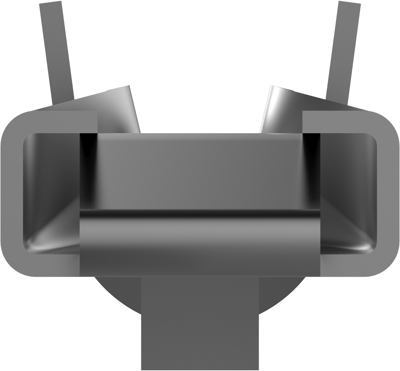

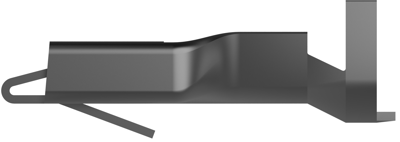

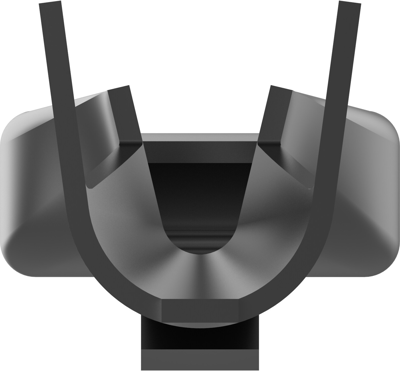

Image may differ

Key Specification:

Ausführung Flachsteckhülse

Geeignet für 6,35 x 0,41 mm

Material Messing, verzinnt

Isoliert No

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.1297 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.13 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Flat receptacle, 640417-2, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: High, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.46 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-0, Packaging Quantity: 2400, Packaging Method: Strip/Reel

Technical specifications

	Anschluss	Crimpanschluss
	Ausführung	Flachsteckhülse
	AWG-Leiterquerschnitt	AWG 18 bis 14
	Geeignet für	6,35 x 0,41 mm
	Isoliert	No
	Länge	20.39 mm
	Leiterquerschnitt	0,82 bis 2,08 mm²
	Material	Messing, verzinnt
