640905-1 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 1.04 to 2.62 mm², AWG 16 to 14, brass, tin-plated, blue, 640905-1

Order No.: 38P7590
EAN: 4099889629002
MPN:
640905-1
Series: FASTON

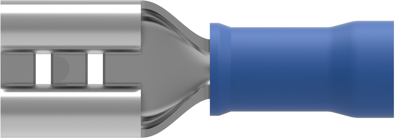

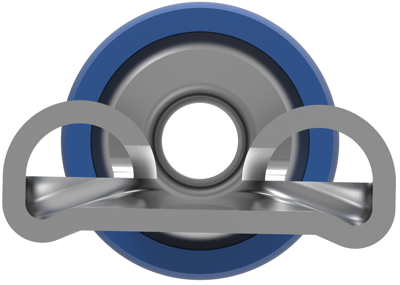

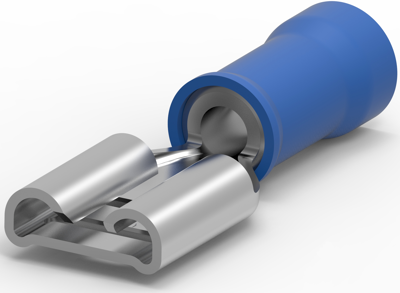

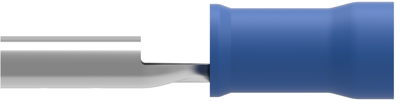

640905-1 AMP Receptacles Image 1
640905-1 AMP Receptacles Image 2
640905-1 AMP Receptacles Image 3
640905-1 AMP Receptacles Image 4
640905-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
1.0353 € *
Available: 181 pcs.
Next delivery: 400 pcs. on 2025-08-06
Available in 5 Days: 6,945 pcs.
Leadtime: 37 Weeks **
Total Price:
1.04 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0353 €
10 pcs.
0.8568 €
50 pcs.
0.7616 €
200 pcs.
0.6545 €
500 pcs.
0.5474 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle, 640905-1, AMP

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.46 mm, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, CSA Certified: Yes, Packaging Quantity: 1000, Packaging Method: Loose Piece, Barrel Color: Blue

Technical Data

  • AWG conductor cross-section: AWG 16 to 14
  • Material: Brass, tin-plated
  • Length: 22,86 mm
  • Isolated: Yes
Technical specifications
Version Flachsteckhülse
Suitable for 6,35 x 0,81 mm
Material Messing, verzinnt
Isolated Yes
Insulation colour blau
Connection Crimpanschluss
Cable cross-section 1,04 bis 2,62 mm²
AWG cross-section AWG 16 bis 14
Nominal size according to DIN DIN 1787
Length 22.9 mm
Logistics
Country of origin TW
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
