696018-2 | AMP

Insulated flat plug sleeve, 5.21 x 0.51 mm, 0.26 to 0.96 mm², AWG 22 to 18, brass, tin-plated, red, 696018-2

Order No.: 72P0901
EAN: 4099891714017
MPN:
696018-2

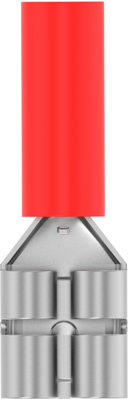

696018-2 AMP Receptacles Image 1

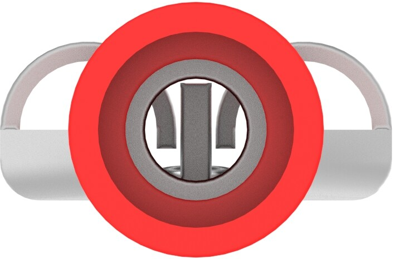

696018-2 AMP Receptacles Image 2

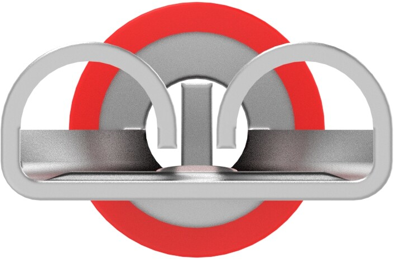

696018-2 AMP Receptacles Image 3

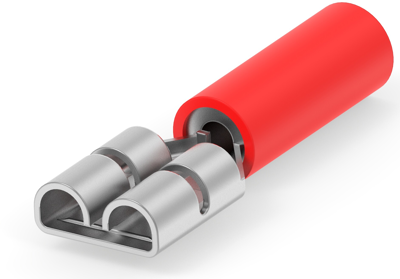

696018-2 AMP Receptacles Image 4

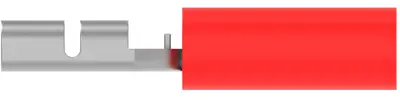

696018-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.5831 € *
Available: 0 pcs.
Available in 5 Days: 4,000 pcs.
Leadtime: 17 Weeks **
Total Price:
2,332.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4000 pcs.
0.5831 €

Receptacle, 696018-2, AMP

The 696018-2 is a pre-insulated terminal designed for complete and uniform reliability in most difficult circuit environments. This product consists tin plated brass body with a specially designed copper sleeve and insulation sleeve fitted over the terminal barrel.

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 22 to 18
Insulation colour red
Suitable for 5.21 x 0.51 mm
Isolated Yes
Length 20.23 mm
Cable cross-section 0.26 to 0.96 mm²
Material brass, tin-plated
Logistics
Country of origin US
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
