737015-3 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 4.0 to 6.63 mm², AWG 11 to 9, brass, tin-plated, 737015-3

Order No.: 35P3564
EAN: 4099889625820
MPN:
737015-3
Series: Positive Lock

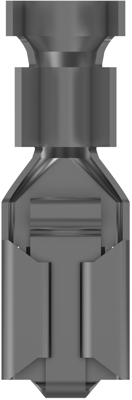

737015-3 AMP Receptacles Image 1

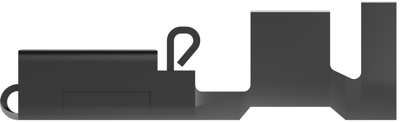

737015-3 AMP Receptacles Image 2

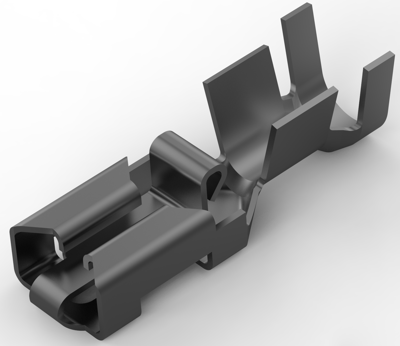

737015-3 AMP Receptacles Image 3

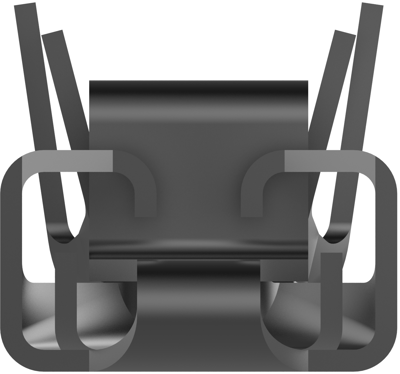

737015-3 AMP Receptacles Image 4

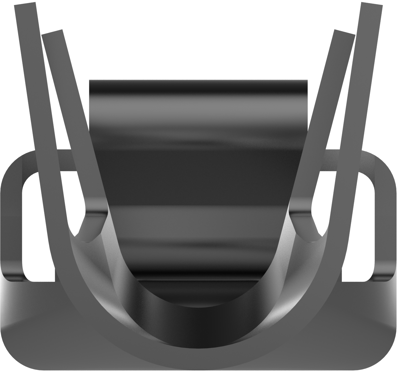

737015-3 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.5117 € *
Available: 581 pcs.
Leadtime: 18 Weeks **
Total Price:
0.51 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5117 €
10 pcs.
0.4284 €
100 pcs.
0.3689 €
500 pcs.
0.3094 €
1000 pcs.
0.2630 €
*incl. VAT plus shipping costs
**Subject to prior sale

Receptacle, 737015-3, AMP

Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 11 – 9 AWG, Wire Size: 4 – 6.63 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 500, Packaging Method: Loose Piece/Carton, Comment: FLK-Wire: Normal Wire

Technical Data

  • AWG conductor cross-section: AWG 11 to 9
  • Material: Brass, tin-plated
  • Length: 22,7 mm
  • Isolated: No
Technical specifications
Connection Crimpanschluss
Version Flachsteckhülse
AWG cross-section AWG 11 bis 9
Suitable for 6,35 x 0,81 mm
Isolated No
Length 22.76 mm
Cable cross-section 4,0 bis 6,63 mm²
Material Messing, verzinnt
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
