737440-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, tin-plated, 737440-2

Order No.: 34P8211
EAN: 4099889622362
MPN:
737440-2
Series: FASTON 250
AMP

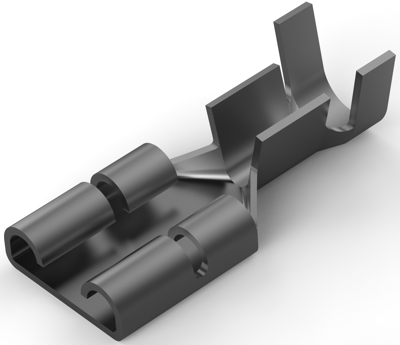

737440-2 AMP Receptacles Image 1

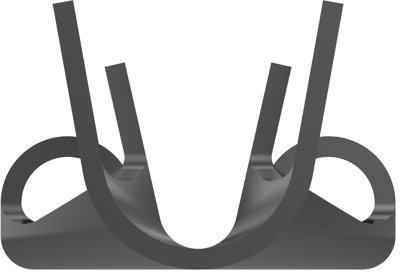

737440-2 AMP Receptacles Image 2

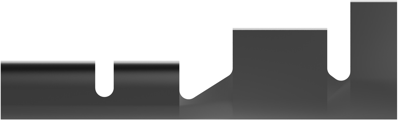

737440-2 AMP Receptacles Image 3

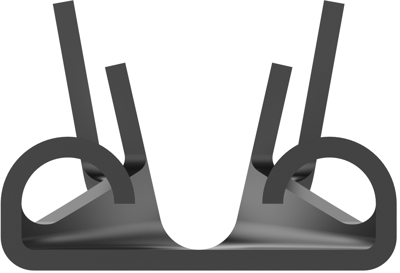

737440-2 AMP Receptacles Image 4

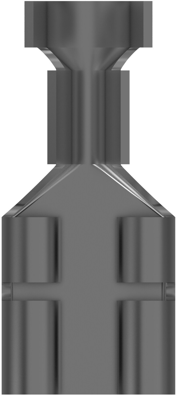

737440-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.0785 € *
Available: 0 pcs.
Available in 5 Days: 473,000 pcs.
Leadtime: 18 Weeks **
Total Price:
0.08 € *
Price list
Quantity
Price per unit*
6000 pcs.
0.0785 €
12000 pcs.
0.0738 €
*incl. VAT plus shipping costs
**Subject to prior sale

Flat receptacle, 737440-2, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 17 – 13 AWG, Wire Size: 1.03 – 2.62 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 6000, Packaging Method: Strip/Reel, Line: Premier

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 17 to 13
Suitable for 6.35 x 0.81 mm
Isolated No
Length 17.1 mm
Cable cross-section 1.03 to 2.62 mm²
Material brass, tin-plated
Logistics
Country of origin CZ
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
