770642-1 | AMP
Uninsulated flat plug sleeve, 3.18 x 0.51 mm, 0.51 to 2.08 mm², AWG 20 to 14, brass, tin-plated, 770642-1
Order No.: 35P3764
EAN: 4099889626964
MPN:
770642-1
Unit Price (€ / pc.)
0.0595 € *
Available: 0 pcs.
Available in 5 Days: 3,200 pcs.
Leadtime: 20 Weeks **

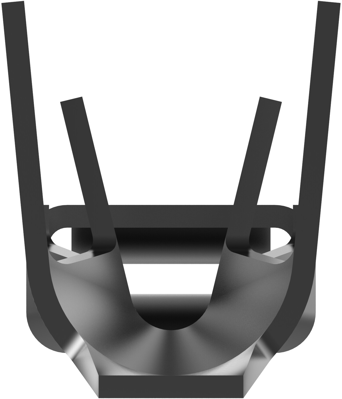

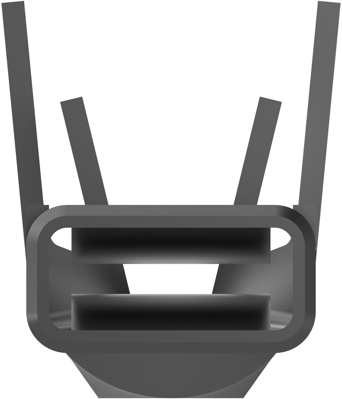

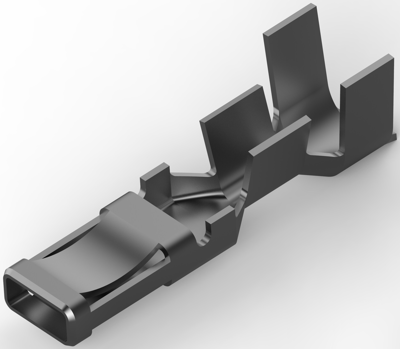

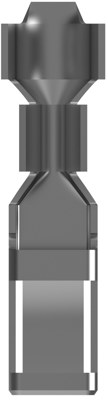

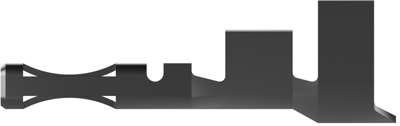

Flat receptacle, 770642-1, TE Connectivity
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.33 mm, Wire Size: 20 – 14 AWG, Wire Size: 0.51 – 2.08 mm², Mating Tab Width: 3.18 mm, Mating Tab Thickness: 0.51 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 3200, Packaging Method: Strip/Reel
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 20 bis 14 | |
| Suitable for | 3,18 x 0,51 mm | |
| Isolated | No | |
| Length | 16.89 mm | |
| Cable cross-section | 0,51 bis 2,08 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
