8-640917-1 | AMP
Insulated flat plug sleeve, 4.75 x 0.51 mm, 0.26 to 0.96 mm², AWG 22 to 18, brass, tin-plated, red, 8-640917-1
Unit Price (€ / pc.)
0.3927 € *
Available: 0 pcs.
Available in 5 Days: 4,400 pcs.
Leadtime: 37 Weeks **

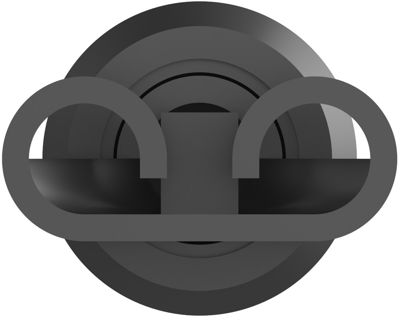

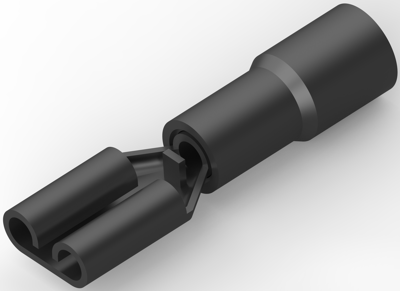

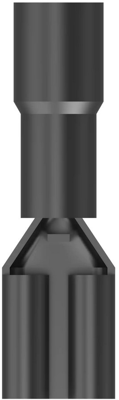

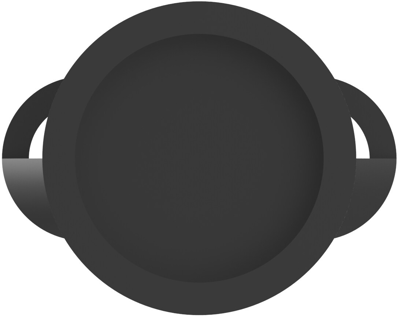

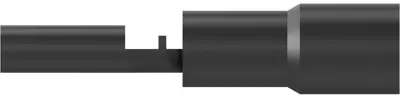

Flat receptacle, 8-640917-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 20.356 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.26 -0.96 mm², Wire Size: 509 – 1900 CMA, Mating Tab Width: 4.75 mm, Operating Temperature Range: 105 °C, RU (UL Component Program): Approved, Packaging Quantity: 100, Packaging Method: Loose Piece, Barrel Color: Red
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Insulation colour | red | |
| Suitable for | 4.75 x 0.51 mm | |
| Isolated | Yes | |
| Length | 20.36 mm | |
| Cable cross-section | 0.26 to 0.96 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
