8-640925-1 | AMP

Insulated flat plug sleeve, 2.79 x 0.8 mm, 0.26 to 0.96 mm², AWG 22 to 18, brass, tin-plated, red, 8-640925-1

Order No.: 72P1996
EAN: 4099891714109
MPN:
8-640925-1
Series: FASTON 110

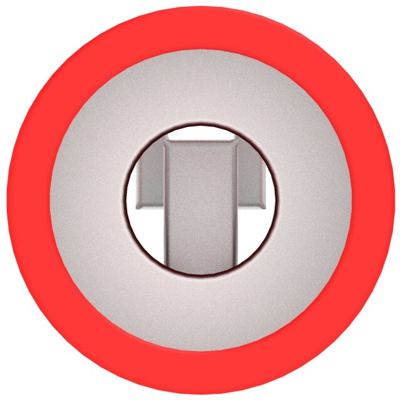

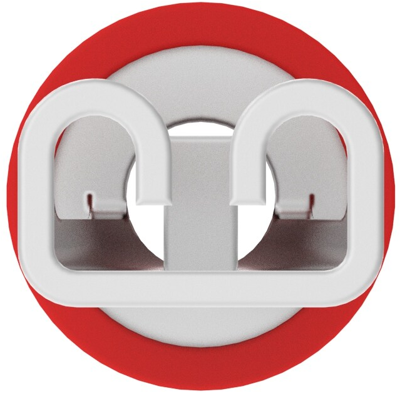

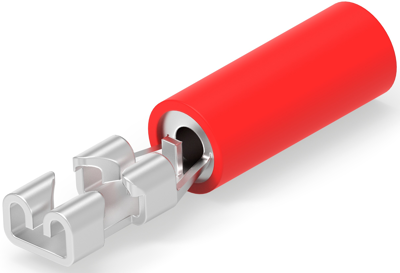

8-640925-1 AMP Receptacles Image 1
8-640925-1 AMP Receptacles Image 2
8-640925-1 AMP Receptacles Image 3
8-640925-1 AMP Receptacles Image 4
8-640925-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Total Price:
1.06 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0591 €
10 pcs.
0.9520 €
50 pcs.
0.8568 €
100 pcs.
0.7735 €
*incl. VAT plus shipping costs
**Subject to prior sale

Plug sleeve, 8-640925-1, AMP

Quick disconnect, Receptacle, 22-18 AWG Wire size, 0.26-0.96 mm² Wire size, 509-1900 CMA Wire size, Mating tab width 2.79 mm.

Technical specifications
Anschluss Crimpanschluss
Ausführung Flachsteckhülse
AWG-Leiterquerschnitt AWG 22 bis 18
Farbe der Isolation rot
Geeignet für 2,79 x 0,8 mm
Isoliert Yes
Länge 20.36 mm
Leiterquerschnitt 0,26 bis 0,96 mm²
Material Messing, verzinnt
Logistics
Ursprungsland US
Zolltarifnummer 85369095
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
