9-1377174-2 | AMP

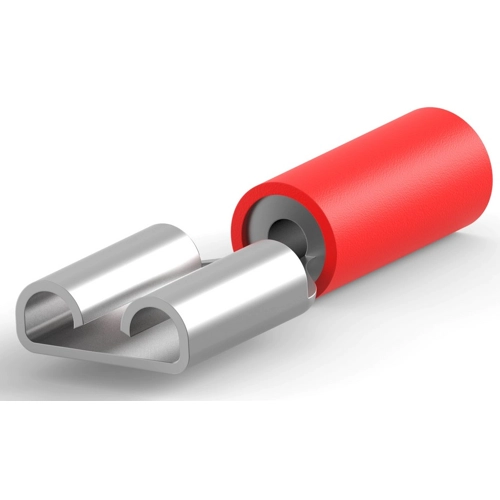

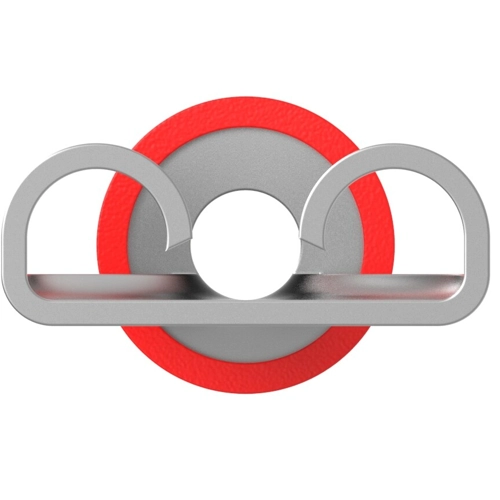

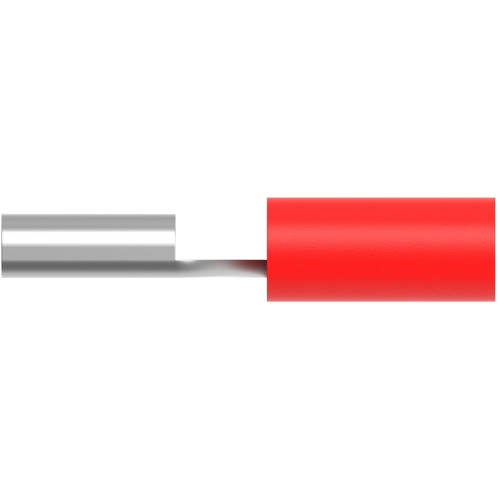

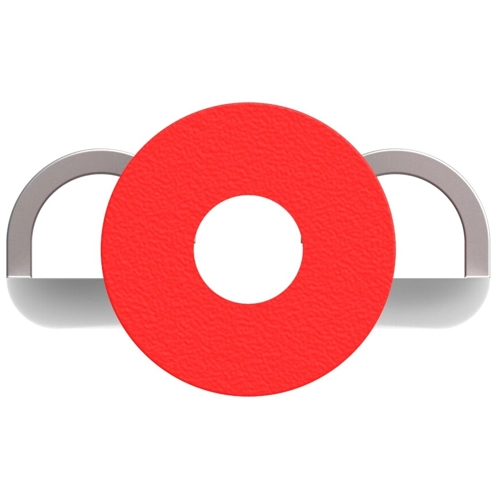

Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.3 to 1.5 mm², AWG 22 to 15, phosphor bronze, tin-plated, red, 9-1377174-2
Order No.: 39P3522
EAN: 4099889629286
MPN:
9-1377174-2
Unit Price (€ / pc.)
0.9520 € *
Available: 0 pcs.
Available in 5 Days: 500 pcs.
Leadtime: 53 Weeks **
Total Price:
0.95 € *
Price list
Quantity
Price per unit*
100 pcs.
0.9520 €
1000 pcs.
0.7973 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 9-1377174-2, AMP
Wire Stop: No, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: Yes, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: Compression, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 3.5 mm, Wire Size: 22 – 15 AWG, Wire Size: 0.3 – 1.5 mm², Wire Size: 592 – 2960 CMA, Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Packaging Quantity: 100, Quick Disconnect Packaging Method: Box, Barrel Color: Red
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 15 | |
| Insulation colour | red | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | Yes | |
| Length | 20.88 mm | |
| Cable cross-section | 0.3 to 1.5 mm² | |
| Material | phosphor bronze, tin-plated |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
