9-1377174-4 | AMP

Insulated flat plug sleeve, 2.8 x 0.41 mm, 1.5 to 2.5 mm², AWG 15 to 13, brass, tin-plated, blue, 9-1377174-4

Order No.: 39P3511
EAN: 4099889629224
MPN:
9-1377174-4
AMP

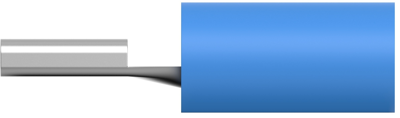

9-1377174-4 AMP Receptacles Image 1

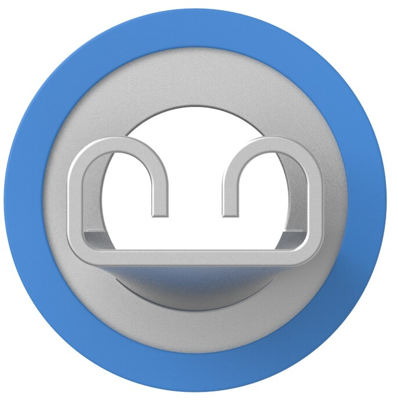

9-1377174-4 AMP Receptacles Image 2

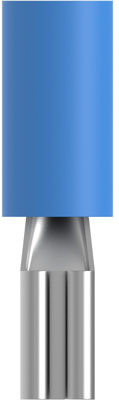

9-1377174-4 AMP Receptacles Image 3

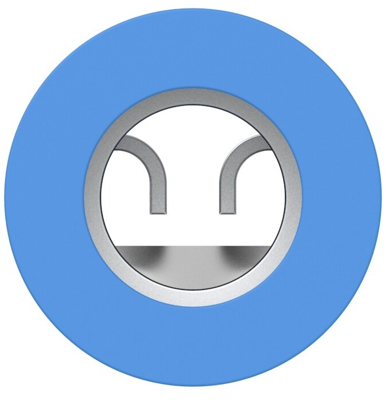

9-1377174-4 AMP Receptacles Image 4

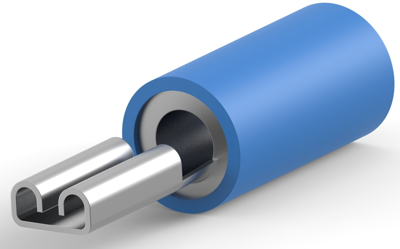

9-1377174-4 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
1.3566 € *
Available: 0 pcs.
Available in 5 Days: 2,900 pcs.
Leadtime: 49 Weeks **
Total Price:
1.36 € *
Price list
Quantity
Price per unit*
65 pcs.
1.3566 €
350 pcs.
1.2971 €
*incl. VAT plus shipping costs
**Subject to prior sale

Quick disconnect, 9-1377174-4, AMP

Wire Stop: No, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: Yes, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 4.29 mm, Wire Size: 15.5 – 13.5 AWG, Wire Size: 1.5 – 2.5 mm², Wire Size: 2960 – 4933 CMA, Quick Disconnect Mating Tab Width: 2.8 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Packaging Quantity: 100, Quick Disconnect Packaging Method: Box, Barrel Color: Blue

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 15 to 13
Insulation colour blue
Suitable for 2.8 x 0.41 mm
Isolated Yes
Length 19.81 mm
Cable cross-section 1.5 to 2.5 mm²
Material brass, tin-plated
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
