9-160583-2 | AMP

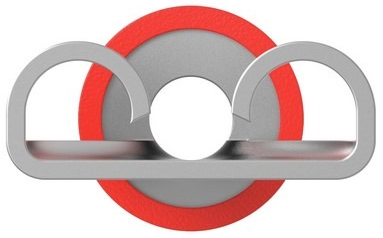

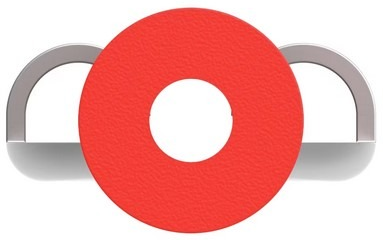

Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.3 to 1.5 mm², AWG 22 to 16, brass, tin-plated, red, 9-160583-2
Unit Price (€ / pc.)
0.6426 € *
Available: 209 pcs.
Next delivery: 667 pcs. on 2025-01-22
Leadtime: On Request **
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
10 pcs.
0.6426 €
50 pcs.
0.5355 €
200 pcs.
0.4760 €
500 pcs.
0.4046 €
*incl. VAT plus shipping costs
**Subject to prior sale
Receptacle, 9-160583-2, AMP
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 22.2 mm, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.5 mm², Wire Size: 592 – 3260 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 1000, Packaging Method: Loose Piece, Barrel Color: Red
Technical Data
- AWG conductor cross-section: AWG 22 to 15.5
- Material: Brass, tin-plated
- Length: 22,2 mm
- Isolated: Yes
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 16 | |
| Insulation colour | red | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | Yes | |
| Length | 22.2 mm | |
| Cable cross-section | 0.3 to 1.5 mm² | |
| Material | brass, tin-plated | |
| Nominal size according to DIN | DIN 1787 |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
