9-160583-6 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.3 to 1.5 mm², AWG 22 to 16, phosphor bronze, silver-plated, red, 9-160583-6

Order No.: 38P7539
EAN: 4099889628692
MPN:
9-160583-6
AMP

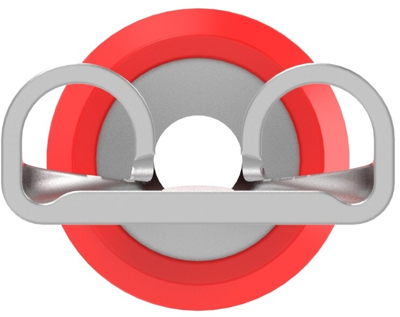

9-160583-6 AMP Receptacles Image 1

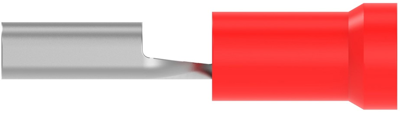

9-160583-6 AMP Receptacles Image 2

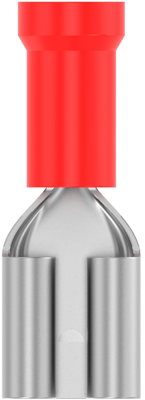

9-160583-6 AMP Receptacles Image 3

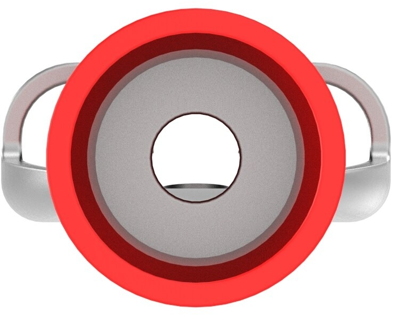

9-160583-6 AMP Receptacles Image 4

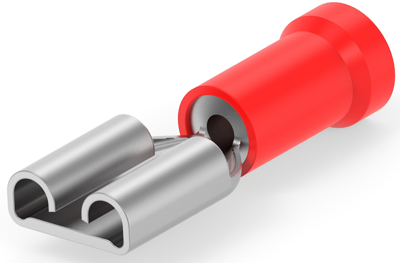

9-160583-6 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10000 pcs.
1.1067 €

Receptacle, 9-160583-6, AMP

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Connection Capacity: Single, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Silver, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 22.2 mm, Wire Size: 22 – 16 AWG, Wire Size: 0.3 – 1.5 mm², Wire Size: 592 – 3260 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Packaging Method: Loose Piece, Barrel Color: Red

Technical Data

  • AWG conductor cross-section: AWG 22 to 15.5
  • Material: Phosphor bronze, silver-plated
  • Length: 22,2 mm
  • Isolated: Yes
Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 22 to 16
Insulation colour red
Suitable for 6.35 x 0.81 mm
Isolated Yes
Length 22.2 mm
Cable cross-section 0.3 to 1.5 mm²
Material phosphor bronze, silver-plated
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
