926820-6 | AMP

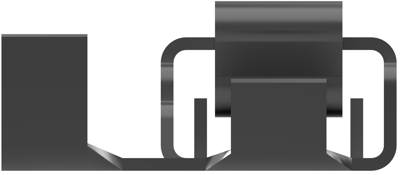

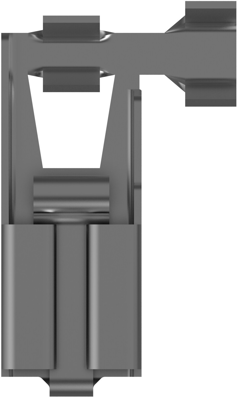

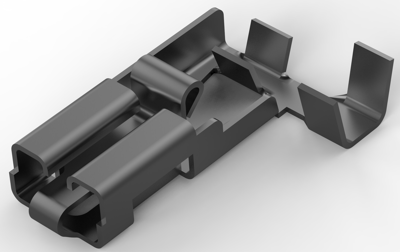

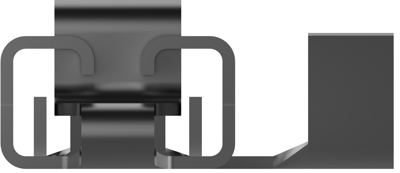

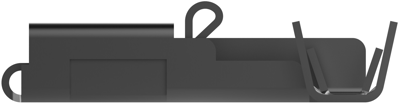

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.03 mm², AWG 20 to 17, brass, tin-plated, 926820-6
Order No.: 35P3581
EAN: 4099889625974
MPN:
926820-6
Unit Price (€ / pc.)
0.1464 € *
Available: 0 pcs.
Leadtime: 29 Weeks **
Total Price:
2,341.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
16000 pcs.
0.1464 €
Quick disconnect, 926820-6, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 20 – 17 AWG, Wire Size: 0.51 – 1.03 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 8000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 20 bis 17 | |
| Suitable for | 6,35 x 0,81 mm | |
| Isolated | No | |
| Length | 18 mm | |
| Cable cross-section | 0,51 bis 1,03 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
