927899-2 | AMP

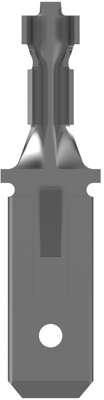

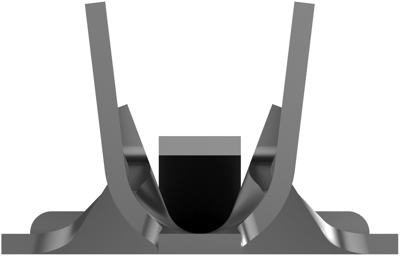

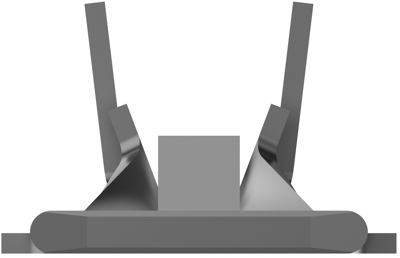

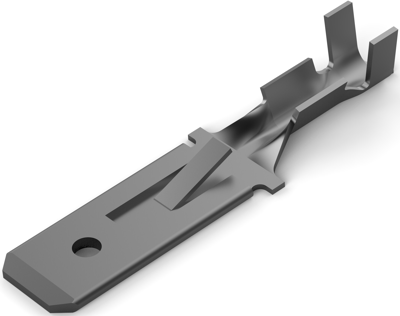

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.32 to 0.82 mm², AWG 22 to 18, brass, tin-plated, 927899-2
Unit Price (€ / pc.)
0.1785 € *
Available: 0 pcs.
Available in 5 Days: 20,826 pcs.
Leadtime: 20 Weeks **
Total Price:
0.18 € *
Price list
Quantity
Price per unit*
500 pcs.
0.1785 €
2500 pcs.
0.1690 €
*incl. VAT plus shipping costs
**Subject to prior sale
Quick disconnect, 927899-2, AMP
Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.4 mm, Wire Size: 22 – 18 AWG, Wire Size: 0.32 – .82 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 500, Quick Disconnect Packaging Method: Loose Piece/Carton, Line: FASTON .250
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Suitable for | 6.35 x 0.81 mm | |
| Isolated | No | |
| Length | 28 mm | |
| Cable cross-section | 0.32 to 0.82 mm² | |
| Material | brass, tin-plated |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
