928901-4 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, phosphor bronze, tin-plated, 928901-4
Unit Price (€ / pc.)
0.4522 € *
Available: 663 pcs.
Next delivery: 3,200 pcs. on 2025-08-11
Leadtime: 31 Weeks **
Total Price:
4.52 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4522 €
50 pcs.
0.4046 €
200 pcs.
0.3570 €
500 pcs.
0.3046 €
*incl. VAT plus shipping costs
**Subject to prior sale

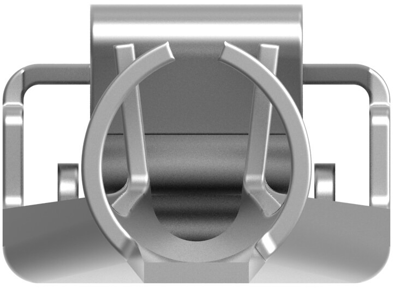

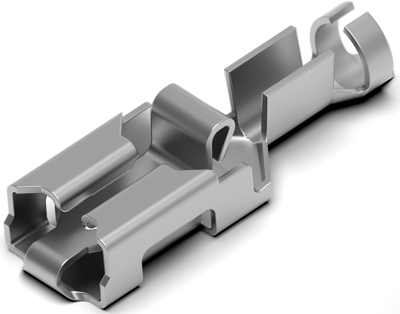

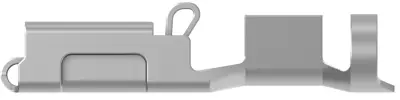

Flat receptacle, 928901-4, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 17 – 13 AWG, Wire Size: 1.03 – 2.62 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 1200, Packaging Method: Loose Piece/Carton, Comment: FLK-Wire: Normal Wire
Technical specifications
| Anschluss | Crimpanschluss | |
| Ausführung | Flachsteckhülse | |
| AWG-Leiterquerschnitt | AWG 17 bis 13 | |
| Geeignet für | 6,35 x 0,81 mm | |
| Isoliert | No | |
| Länge | 22.3 mm | |
| Leiterquerschnitt | 1,03 bis 2,62 mm² | |
| Material | Phosphorbronze, verzinnt |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
