928947-2 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 1.03 to 2.62 mm², AWG 17 to 13, brass, tin-plated, 928947-2
Unit Price (€ / pc.)
0.2535 € *
Available: 0 pcs.
Available in 5 Days: 6,000 pcs.
Leadtime: 37 Weeks **
Total Price:
760.41 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.2535 €
6000 pcs.
0.2404 €
*incl. VAT plus shipping costs
**Subject to prior sale

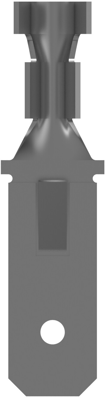

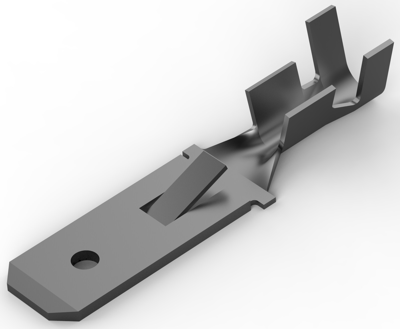

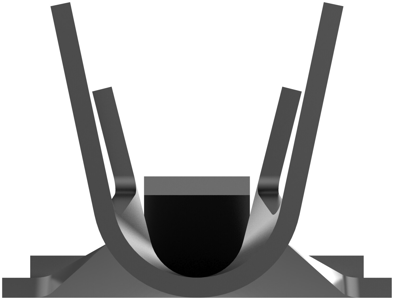

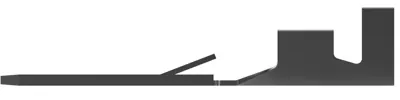

Flat receptacle, 928947-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 17 – 13 AWG, Wire Size: 1.03 – 2.62 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 3000, Packaging Method: Strip/Reel, Comment: According to DIN 46343, Part 3,With locking hole.
Technical specifications
| Connection | Crimpanschluss | |
| Version | Flachsteckhülse | |
| AWG cross-section | AWG 17 bis 13 | |
| Suitable for | 6,35 x 0,81 mm | |
| Isolated | No | |
| Length | 28 mm | |
| Cable cross-section | 1,03 bis 2,62 mm² | |
| Material | Messing, verzinnt |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
