1634201-1 | AMP
Rocker switch, black, 2 pole, On-Off, off switch, 16 A/125 VAC, unlit, unprinted, 1634201-1
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Available in 5 Days: 1,686 pcs.
Leadtime: 30 Weeks **
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
50 pcs.
1.7850 €
250 pcs.
1.7493 €
*incl. VAT plus shipping costs
**Subject to prior sale

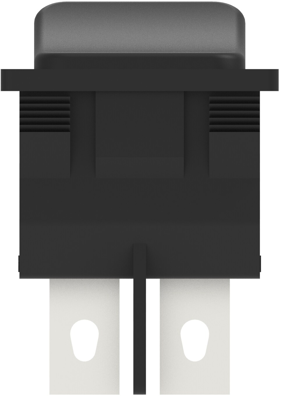

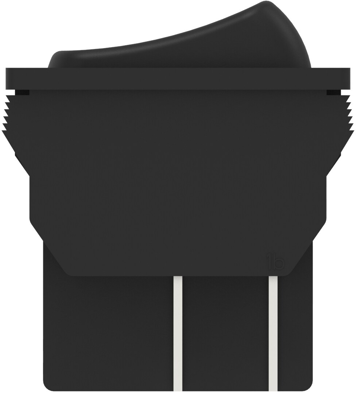

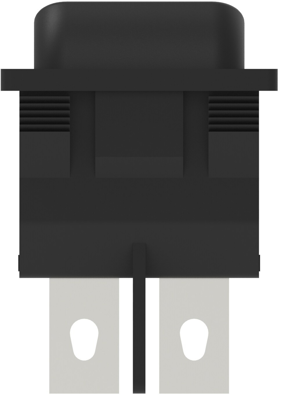

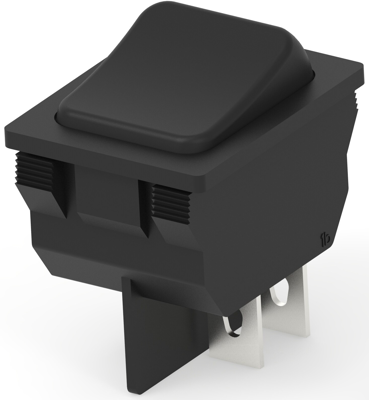

Rocker Switch, 1634201-1, AMP
Product Type: Switch, Rocker Switch Type: Power, Lamp: Without, Rocker Switch LED: Without, Actuator Type: Top, Indicator/Imprint Legend: None, Panel Cutout Size: 30.2 x 22.2 mm, Configuration (Pole-Throw): Double Pole - Single Throw, Operating Function: On Off, Rocker Switch Voltage Rating: 125 VAC,250 VAC, Beveled Frame Color: Black, Actuator Color: Black, Terminal Tab Width: 6.35 mm, Switch Contact Plating Material: Silver Tin Oxide, Rocker Switch Contact Current Rating: 10 A,16 A, Termination Type: Quick Connect, Mounting Angle: Vertical, Rocker Switch Mounting Type: Panel, Process Sealed: No, VDE Tested: Yes, Comment: Dust Resistant.,Non-Illuminated
Technical specifications
| Connection | quick connection | |
| Design | rectangular | |
| Printed | No | |
| illuminated | No | |
| Actuator colour | black | |
| contact surface | silver-plated | |
| min. Geräteausschnitt | 30.2 x 22.2 mm | |
| Pin number | 2 pole | |
| Latching switching function | off switch | |
| Breaking capacity | 16 A/125 VAC | |
| Shift position | On-Off | |
| Wall thickness | 0.75 to 3 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
