1634202-5 | AMP
Rocker switch, black, 1 pole, On-Off, off switch, 10 A/125 VAC, illuminated, unprinted, 1634202-5
Unit Price (€ / pc.)
2.2491 € *
Available: 0 pcs.
Leadtime: 26 Weeks **
Total Price:
2,249.10 € *
Price list
Quantity
Price per unit*
1000 pcs.
2.2491 €
5000 pcs.
2.1182 €
*incl. VAT plus shipping costs
**Subject to prior sale

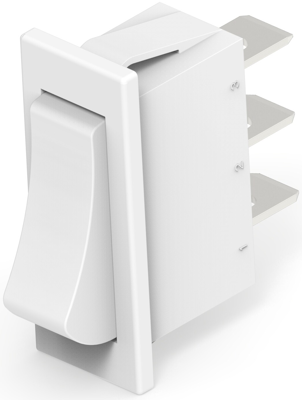

Rocker Switch, 1634202-5, AMP
Product Type: Switch, Rocker Switch Type: Power, Lamp: With, Rocker Switch LED: Without, Actuator Type: Top, Indicator/Imprint Legend: None, Panel Cutout Size: 30.2 x 11.2 mm, Configuration (Pole-Throw): Single Pole - Single Throw, Operating Function: On Off, Rocker Switch Voltage Rating: 125 VAC,250 VAC, Beveled Frame Color: Black, Actuator Color: Black, Terminal Tab Width: 6.35 mm, Switch Contact Plating Material: Silver Tin Oxide, Rocker Switch Contact Current Rating: 10 A, Termination Type: Quick Connect, Mounting Angle: Vertical, Rocker Switch Mounting Type: Panel, Process Sealed: No, VDE Tested: Yes, Comment: Dust Resistant.,Lamp-Illuminated Rocker Button.
Technical specifications
| Connection | Schnellanschluss | |
| Design | rechteckig | |
| Printed | No | |
| illuminated | Yes | |
| Actuator colour | schwarz | |
| contact surface | versilbert | |
| min. Geräteausschnitt | 30,2 x 11,2 mm | |
| Pin number | 1-polig | |
| Latching switching function | Ausschalter | |
| Breaking capacity | 10 A/125 VAC | |
| Shift position | Ein-Aus | |
| Wall thickness | 0,75 bis 3 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
