T4032014031-000 | AMP

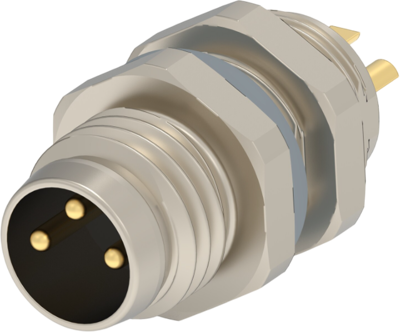

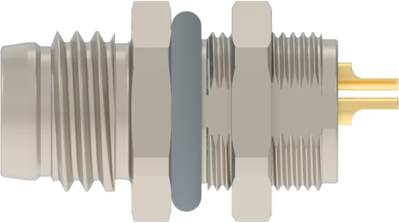

Panel plug, M8, 3 pole, solder connection, screw locking, straight, T4032014031-000
Order No.: 59F724
MPN:
T4032014031-000
Unit Price (€ / pc.)
7.4256 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
7.43 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4256 €
10 pcs.
6.9020 €
50 pcs.
6.3546 €
100 pcs.
5.7834 €
*incl. VAT plus shipping costs
**Subject to prior sale
Built-in plug, T4032014031-000, AMP
3 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, A Code, M8 Connector.
Technical specifications
| Version | Einbaustecker | |
| Thread size | M8 | |
| Coding | A | |
| Contact connection | Lötanschluss | |
| contact surface | vergoldet | |
| Assembly | Panelmontage | |
| Orientation | gerade | |
| Pin number | 3-polig | |
| Degree of protection (IP) | IP67 | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
