142270-3 | AMP

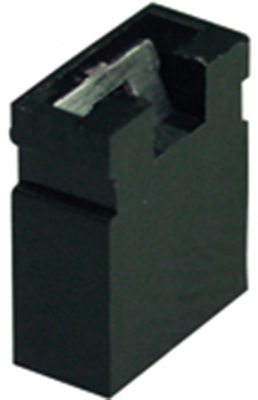

Short circuit jumper, pitch 2.54 mm, 3 A, tin-plated, black, 142270-3
Order No.: 40F4232
EAN: 4099889686654
MPN:
142270-3
0-0142270-3
Unit Price (€ / pc.)
0.4641 € *
Available: 4,026 pcs.
Next delivery: 504 pcs. on 2025-06-24
Leadtime: On Request **
Total Price:
4.64 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4641 €
50 pcs.
0.4284 €
200 pcs.
0.3570 €
500 pcs.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale
Short-circuit jumpers and bridges for 2.54 mm grid, type TE Connectivity/AMP 0-0142270-.
With sockets for square terminal posts 0.64 x 0.64 mm or round terminal posts with a diameter of 0.64 mm; Grid: 2.54 mm. With test probe slot in the upper housing part. Contacts: copper beryllium. Housing: polyester to UL 94 V-0. Operating temperatures: –55 to +125 °C. Rated current: 3.0 A.
Type: 0-0142270-3, tinned
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 3 A | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
