1-966067-7 | AMP
Insulated wire end ferrule, 2.5 mm², 18 mm/12 mm long, DIN 46228/4, blue, 1-966067-7
Order No.: 39P3060
EAN: 4099889617665
MPN:
1-966067-7
Unit Price (€ / pc.)
0.0952 € *
Available: 0 pcs.
Available in 5 Days: 7,881 pcs.
Leadtime: 26 Weeks **
Total Price:
0.10 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.0952 €
6000 pcs.
0.0821 €
*incl. VAT plus shipping costs
**Subject to prior sale

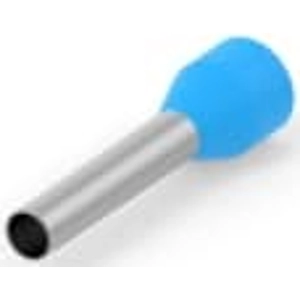

Wire end ferrule, 1-966067-7, TE Connectivity
Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: No, Support Style: Insulation Support, Double Wire: No, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal Length: 12 mm, Crimp Wire Pin, Tab & Ferrule Terminal Type: Ferrule, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Wire Insulation Support: With, 2-Wire Size: 2.5 mm², Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 4.1 mm, Wire Size: 13 AWG, Wire Size: 2.5 mm², Barrel Inside Diameter: 2.2 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Packaging Quantity: 500, Crimp Wire Pin, Tab & Ferrule Packaging Method: Bag, Barrel Color: Blue
Technical specifications
| Colour | blue | |
| Material Insulation | polypropylene | |
| Isolated | Yes | |
| Contact material | copper | |
| Length | 18 mm | |
| Cable cross-section | 2.5 mm² | |
| max. operating temperature | 105 °C | |
| Standard number | DIN 46228/4 | |
| Pin lenght | 12 mm |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 73269098 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
