966903-2 | AMP

Insulated wire end ferrule, 1.5 mm², 14 mm/8 mm long, black, 966903-2

Order No.: 39P3110
EAN: 4099889618143
MPN:
966903-2

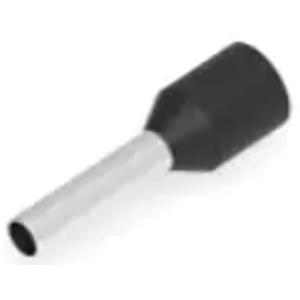

966903-2 AMP Wire-end Ferrules Image 1
966903-2 AMP Wire-end Ferrules Image 2
966903-2 AMP Wire-end Ferrules Image 3
966903-2 AMP Wire-end Ferrules Image 4
Image may differ
Unit Price (€ / pc.)
0.0500 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
749.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
15000 pcs.
0.0500 €

Crimp Wire Pins, Tabs and Ferrules, 966903-2, AMP

Crimp Wire Pin, Tab & Ferrule Barrel Type: Closed Barrel, Crimp Wire Pin, Tab & Ferrule Wire/Cable Type: Regular Wire, Sealable: No, Insulated: Yes, Insulation Sleeve Material: PP/E-Cu, Crimp Wire Pin, Tab & Ferrule Plating Material: Tin, Terminal Length: 8 mm, Terminal & Splice Type: Ferrule, Crimp Wire Pin, Tab & Ferrule Terminal Type: Ferrule, Crimp Wire Pin, Tab & Ferrule Terminal Orientation: Straight, Bullet Terminal: Without, Wire Insulation Support: Without, Strip Length: 10 mm, Crimp Wire Pin, Tab & Ferrule Wire Insulation Diameter (Max): 3.4 mm, Accepts Wire Insulation Diameter Range: 3.4 mm, Wire Size: 16 – 15 AWG, Wire Size: 1.25 – 1.5 mm², Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Packaging Quantity: 7500, Crimp Wire Pin, Tab & Ferrule Packaging Method: Strip, Barrel Color: Black

Technical specifications
Farbe schwarz
Isolationsmaterial Polypropylen
Isoliert Yes
Kontaktmaterial Kupfer
Länge 14 mm
Leiterquerschnitt 1,5 mm²
max. Temperatur 105 °C
Pinlänge 8 mm
Logistics
Ursprungsland US
Zolltarifnummer 85389011
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
