901-125-11SF | Amphenol RF

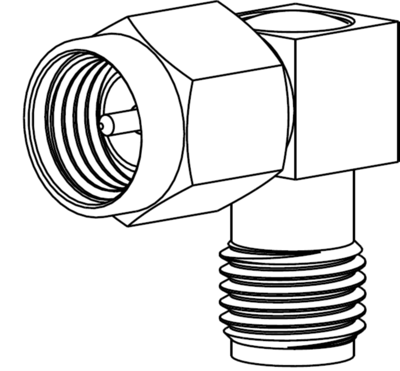

Coaxial adapter, 50 Ω, SMA plug to SMA socket, angled, 901-125-11SF
Order No.: 81F4417
EAN: 4099889853308
MPN:
901-125-11SF
M55339/02-30001
Unit Price (€ / pc.)
80.8962 € *
Available: 0 pcs.
Leadtime: On Request **
901-125-11SF made by Amphenol RF at Bürklin Elektronik
Find detailed information about Amphenol RF 901-125-11SF on our website. The manufacturer's description for the product 901-125-11SF is: RF Adapter, M55339/02-30001, SMA Plug to SMA Jack, Right Angle, 50 ohmMore details about Amphenol RF 901-125-11SF
- Product Description: RF Adapter, M55339/02-30001, SMA Plug to SMA Jack, Right Angle, 50 ohm
- Product Type: Adapters
- Product Status: Active
- Brand: Amphenol RF
Technical Attributes of Amphenol RF 901-125-11SF
- Orientation: Right Angle
- Impedance (Ohms): 50
- Adapter Side 1: SMA
- Side 1 Gender: Plug
- Adapter Side 2: SMA
- Side 2 Gender: Jack
- Body Finish: Passivated
- Body Material: Stainless Steel
- Contact Finish: Gold
- Contact Material: Beryllium Copper
- Insulator Material: PTFE
- Max Frequency (GHz): 12.4
- Min. Temp. (Celsius): -65
- Max. Temp. (Celsius): 165
- Military Part Number: M55339/02-30001
Technical specifications
| Bauform | abgewinkelt | |
| Impedanz | 50 Ω | |
| Steckverbinder (Ausgang) | SMA-Buchse | |
| Steckverbinder | SMA-Stecker |
Download
Logistics
| Ursprungsland | MX |
| Zolltarifnummer | 85366910 |
| Originalverpackung | Beutel mit 1 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
