031-6169 | Amphenol RF

Name: TNC socket 50 Ω, RG-58, RG-141, LMR-195, Belden 7806A, Belden 9311, crimp connection, straight, 031-6169
Brand: Amphenol RF
SKU: 81F3004
Price: 11.01 EUR
Availability: OutOfStock

TNC socket 50 Ω, RG-58, RG-141, LMR-195, Belden 7806A, Belden 9311, crimp connection, straight, 031-6169

Order No.: 81F3004

EAN: 4099889838619

MPN:

031-6169

Series: TNC

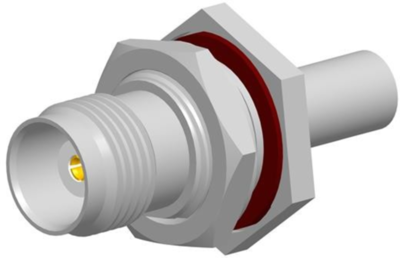

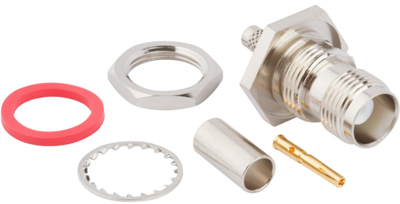

031-6169 Amphenol RF Coaxial Connectors Image 2

Image may differ

Key Specification:

Impedanz 50 Ω

Steckverbinder TNC

Kabelgruppe RG-58, RG-141, LMR-195, Belden 7806A, Belden 9311

Bauform gerade

Kontaktmaterial Phosphorbronze

Show 45 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

11.0075 € *

Available: 0 pcs.

Leadtime: 12 Weeks **

Total Price:

1,100.75 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

RF Connector, 031-6169, Amphenol RF

RF Connector, TNC Straight Crimp Jack for RG-142, RG-223, RG-400, Bulkhead, 50 Ω

Technical specifications

	Ausführung	Buchse
	Bauform	gerade
	Impedanz	50 Ω
	Kabelgruppe	RG-58, RG-141, LMR-195, Belden 7806A, Belden 9311
	Kontaktanschluss	Crimpanschluss
	Kontaktmaterial	Phosphorbronze
	Steckverbinder	TNC

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	CN
Zolltarifnummer	85366910
Originalverpackung	Beutel mit 1 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
