172114 | Amphenol RF

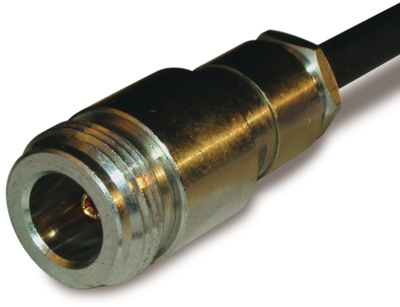

Name: N socket 50 Ω, RG-58, RG-141, LMR-195, Belden 7806A, Belden 9311, solder connection, straight, 172114
Brand: Amphenol RF
SKU: 81F1649
Price: 8.64 EUR
Availability: OutOfStock

N socket 50 Ω, RG-58, RG-141, LMR-195, Belden 7806A, Belden 9311, solder connection, straight, 172114

Order No.: 81F1649

EAN: 4099889836042

MPN:

172114

Series: N

Image may differ

Key Specification:

Impedanz 50 Ω

Steckverbinder N

Kabelgruppe RG-58, RG-141, LMR-195, Belden 7806A, Belden 9311

Bauform gerade

Kontaktmaterial Phosphorbronze

Show 25 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

8.6394 € *

Available: 0 pcs.

Leadtime: 12 Weeks **

Total Price:

2,159.85 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

RF Connector, 172114, Amphenol RF

RF Connector, N Type Straight Clamp Jack for RG-58, LMR-195, 50 Ω

Technical specifications

	Ausführung	Buchse
	Bauform	gerade
	Impedanz	50 Ω
	Kabelgruppe	RG-58, RG-141, LMR-195, Belden 7806A, Belden 9311
	Kontaktanschluss	Lötanschluss
	Kontaktmaterial	Phosphorbronze
	Steckverbinder	N

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	CN
Zolltarifnummer	85366910

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
