172143 | Amphenol RF

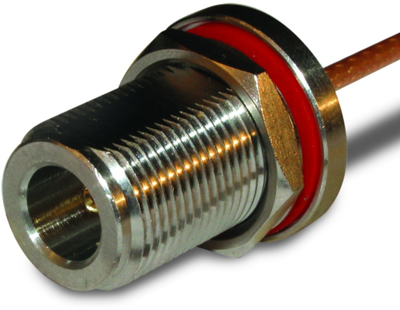

Name: N socket 50 Ω, RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL, solder connection, straight, 172143
Brand: Amphenol RF
SKU: 81F1618
Price: 9.88 EUR
Availability: OutOfStock

N socket 50 Ω, RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL, solder connection, straight, 172143

Order No.: 81F1618

EAN: 4099889835885

MPN:

172143

Series: N

Image may differ

Key Specification:

Impedanz 50 Ω

Steckverbinder N

Kabelgruppe RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL

Bauform gerade

Kontaktmaterial Messing

Show 25 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.877 € *

Available: 0 pcs.

Leadtime: 12 Weeks **

Total Price:

987.70 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

RF Connector, 172143, Amphenol RF

RF Connector, N Type Straight Solder Jack for RG-174, RG-316, LMR-100, 50 Ω, Bulkhead

Technical specifications

	Ausführung	Buchse
	Bauform	gerade
	Impedanz	50 Ω
	Kabelgruppe	RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL
	Kontaktanschluss	Lötanschluss
	Kontaktmaterial	Messing
	Steckverbinder	N

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	CN
Zolltarifnummer	85366910

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
