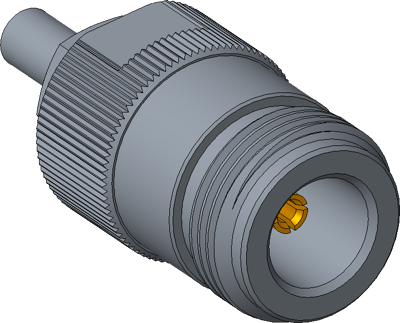

172204 | Amphenol RF

Name: N socket 50 Ω, RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL, solder connection, straight, 172204
Brand: Amphenol RF
SKU: 81F1559
Price: 8.27 EUR
Availability: OutOfStock

N socket 50 Ω, RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL, solder connection, straight, 172204

Order No.: 81F1559

EAN: 4099889835632

MPN:

172204

Series: N

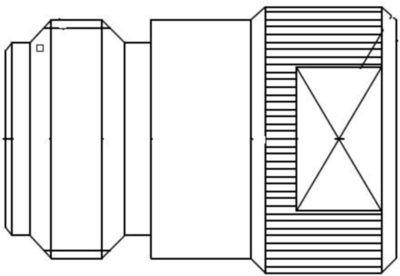

172204 Amphenol RF Coaxial Connectors Image 2

Image may differ

Key Specification:

Impedanz 50 Ω

Steckverbinder N

Kabelgruppe RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL

Bauform gerade

Kontaktmaterial Phosphorbronze

Show 25 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

8.2705 € *

Available: 0 pcs.

Leadtime: 12 Weeks **

Total Price:

827.05 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

RF Connector, 172204, Amphenol RF

RF Connector, N Type Straight Crimp Jack for RG-174, RG-316, LMR-100, 50 Ω

Technical specifications

	Ausführung	Buchse
	Bauform	gerade
	Impedanz	50 Ω
	Kabelgruppe	RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL
	Kontaktanschluss	Lötanschluss
	Kontaktmaterial	Phosphorbronze
	Steckverbinder	N

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	CN
Zolltarifnummer	85366910

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
