919-104P-51AX | Amphenol RF

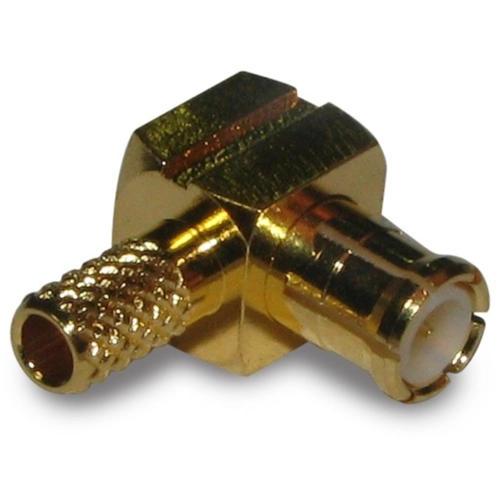

Name: MCX plug 50 Ω, RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL, solder connection, angled, 919-104P-51AX
Brand: Amphenol RF
SKU: 81F4643
Price: 9.48 EUR
Availability: OutOfStock

MCX plug 50 Ω, RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL, solder connection, angled, 919-104P-51AX

Order No.: 81F4643

EAN: 4099889848410

MPN:

919-104P-51AX

Series: MCX

Image may differ

Key Specification:

Impedanz 50 Ω

Steckverbinder MCX

Kabelgruppe RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL

Bauform abgewinkelt

Kontaktmaterial Messing

Show 15 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

9.4843 € *

Available: 0 pcs.

Leadtime: 19 Weeks **

Total Price:

948.43 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

RF Connector, 919-104P-51AX, Amphenol RF

RF Connector, MCX Right Angle Crimp Plug for RG-174, RG-188A, RG-316, 50 Ω

Technical specifications

	Ausführung	Stecker
	Bauform	abgewinkelt
	Impedanz	50 Ω
	Kabelgruppe	RG-174, RG-188, RG-316, LMR-100A, Belden 7805A, RG-174LL
	Kontaktanschluss	Lötanschluss
	Kontaktmaterial	Messing
	Steckverbinder	MCX

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Montageanleitung - EN Montageanleitung

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	CN
Zolltarifnummer	85366910
Originalverpackung	Beutel mit 1 Stück

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei
