C016 10F006 000 12 | Amphenol

Jack, 6 pole, crimp connection, screw locking, angled, C016 10F006 000 12

Order No.: 72F1172
EAN: 4099889741698
MPN:
C016 10F006 000 12
Series: eco mate
Amphenol

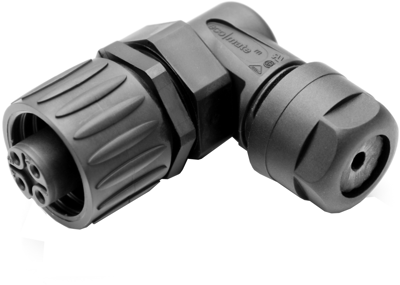

C016 10F006 000 12 Amphenol Other Circular Connectors Image 1
C016 10F006 000 12 Amphenol Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.3415 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
9.3415 €

Circular connector, type Amphenol eco mate.

For industrial applications, plastic housing, screw locking; Rated voltage: 250 V. Current rating (at +55 °C): 12 A. Contact resistance max. 5.0 mohm. Contact finish: silver-plated. Degree of protection: IP65/IP67 in mated state. Degree of soiling: 3. Insertion/removal force: max. 30 N. Useful life: min. 500 insertion/removal cycles. Overvoltage category: III. Insulation group: II. Conductor cross-section: 0.14 to 1.5 mm². Color: black. Inflammability: UL 94 V-0. Operating temperatures: - 40 bis +125 °C.

Female cable plugs, angled, type eco mate.

Strain relief by means of cage cable clamp for cable diameters from 6.0 to 12.5 mm. Crimp contacts are available on separate order.

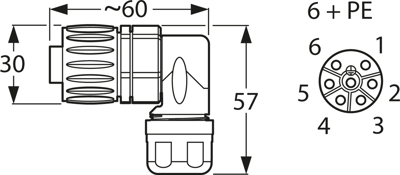

Technical attributes (type, number of poles, connection type): C016 10 F006 000 12, 6 + PE, crimp terminals

Technical specifications
Version jack
Shell Material PA
Cable diameter 6 to 12.5 mm
Contact connection crimp connection
Cable cross-section 0.14-1.5 mm²
Assembly cable assembly
Orientation angled
Pin number 6 pole
Type of locking screw locking
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
