C016 10G006 000 12 | Amphenol

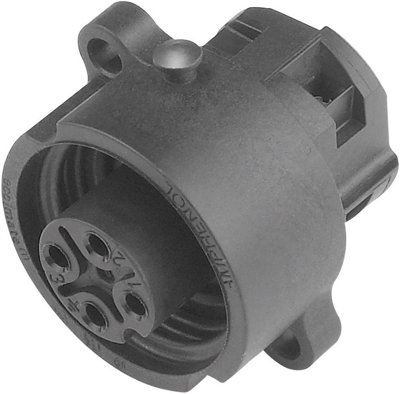

Panel socket, 6 pole, crimp connection, screw locking, straight, C016 10G006 000 12
Unit Price (€ / pc.)
5.0218 € *
Available: 0 pcs.
Leadtime: On Request **
Circular connector, type Amphenol eco mate.
For industrial applications, plastic housing, screw locking; Rated voltage: 250 V. Current rating (at +55 °C): 12 A. Contact resistance max. 5.0 mohm. Contact finish: silver-plated. Degree of protection: IP65/IP67 in mated state. Degree of soiling: 3. Insertion/removal force: max. 30 N. Useful life: min. 500 insertion/removal cycles. Overvoltage category: III. Insulation group: II. Conductor cross-section: 0.14 to 1.5 mm². Color: black. Inflammability: UL 94 V-0. Operating temperatures: - 40 bis +125 °C.
Female appliance connectors, type eco mate.

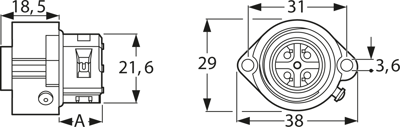

Dimension A: 16,5 mm.
Technical attributes (type, number of poles, connection type): C016 10G006 000 12, 6 + PE, crimp terminals
Technical specifications
| Ausführung | Flanschbuchse | |
| Gehäusematerial | PA | |
| Kontaktanschluss | Crimpanschluss | |
| Leiterquerschnitt | 0,14-1,5 mm² | |
| Montage | Panelmontage | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | CZ |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
