C016 30C006 100 12 | Amphenol

Panel plug, 6 pole, solder cup, screw locking, straight, C016 30C006 100 12

Order No.: 72F1176
EAN: 4099889741711
MPN:
C016 30C006 100 12
Series: eco mate
Amphenol

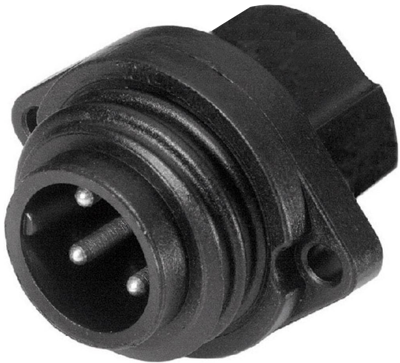

C016 30C006 100 12 Amphenol Other Circular Connectors Image 1
C016 30C006 100 12 Amphenol Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.6755 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
7.6755 €

Circular connector, type Amphenol eco mate.

For industrial applications, plastic housing, screw locking; Rated voltage: 250 V. Current rating (at +55 °C): 13 A. Contact resistance max. 5.0 mohm. Contact finish: silver-plated. Degree of protection: IP65/IP67 in mated state. Degree of soiling: 3. Insertion/removal force: max. 30 N. Useful life: min. 500 insertion/removal cycles. Overvoltage category: III. Insulation group: II. Conductor cross-section: max. 0.75 mm². Color: black. Inflammability: UL 94 V-0. Operating temperatures: - 40 bis +125 °C.

Appliance connectors, type eco mate.

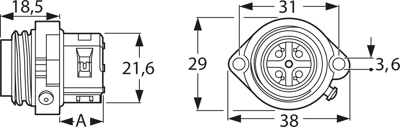

Dimension A: screw terminal 14 mm, solder terminal 12 mm, crimp terminal 16 mm. Crimp contacts are available on separate order.

Technical attributes (type, number of poles, connection type): C016 30C006 100 12, 6 + PE, solder terminals

Technical specifications
Version flange plug
Shell Material PA
Contact connection solder cup
contact surface silver-plated
Cable cross-section 0.75 mm²
Assembly panel mounting
Orientation straight
Pin number 6 pole
Type of locking screw locking
Logistics
Country of origin CZ
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
