C091 31H008 100 2 | Amphenol

Plug, 8 pole, solder cup, screw locking, straight, C091 31H008 100 2

Order No.: 70F4394
EAN: 4099889737066
MPN:
C091 31H008 100 2
Series: C 091
Amphenol

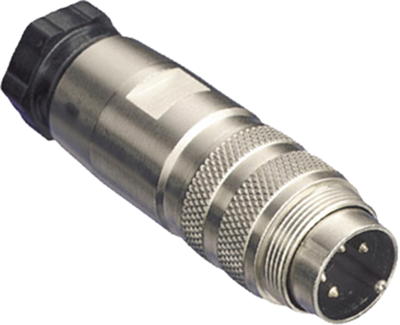

C091 31H008 100 2 Amphenol Other Circular Connectors Image 1

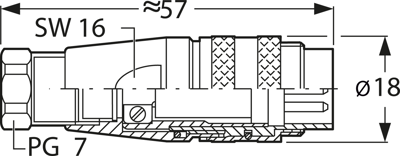

C091 31H008 100 2 Amphenol Other Circular Connectors Image 2

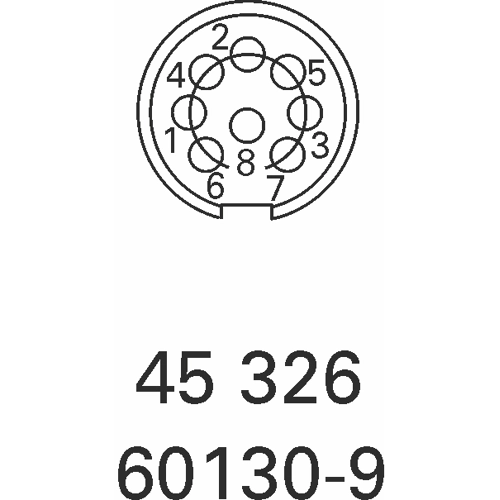

C091 31H008 100 2 Amphenol Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
16.7552 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
16.76 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
16.7552 €

Circular connector with screw lock, type Amphenol C 091 D.

With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Seal material: Neoprene. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 67/65. Operating temperatures: –40 to +100 °C. Certification: UL.

Male cable connectors, straight, for cable diameters from 4.0 to 6.0 mm, type C 091 D.

Technical attributes (type, number of poles, rated voltage, insertion/removal force): C091 31H008 100 2, 8-pole, 100 V AC/DC, 60 N

Technical specifications
Ausführung DIN-Stecker
Bestückung bestückt
Gehäusematerial Zinkdruckguss
Kabeldurchmesser 4 bis 6 mm
Kontaktanschluss Lötkelch
Kontaktoberfläche versilbert
Leiterquerschnitt 0,5 mm²
Montage Kabelmontage
Orientierung gerade
Polzahl 8-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
