C091 31N006 100 2 | Amphenol

Panel socket, 6 pole, solder cup, screw locking, straight, C091 31N006 100 2

Order No.: 70F4444
EAN: 4099889737271
MPN:
C091 31N006 100 2
Series: C 091
Amphenol

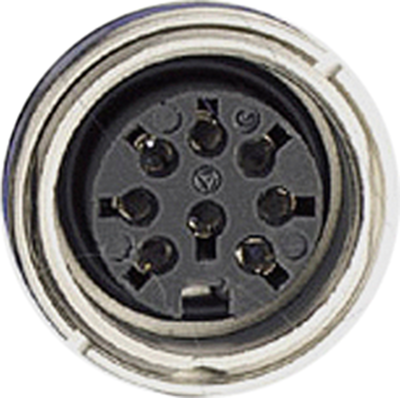

C091 31N006 100 2 Amphenol Other Circular Connectors Image 1

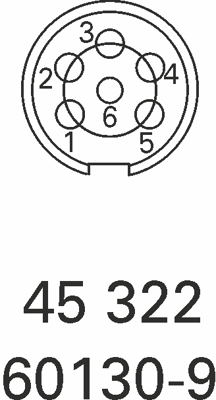

C091 31N006 100 2 Amphenol Other Circular Connectors Image 2

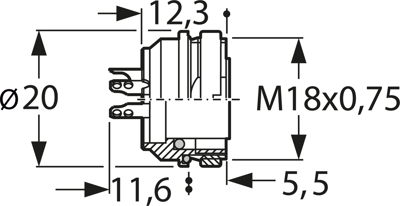

C091 31N006 100 2 Amphenol Other Circular Connectors Image 3
Image may differ
Unit Price (€ / pc.)
9.7937 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
9.79 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7937 €
10 pcs.
9.1035 €
50 pcs.
8.3776 €
100 pcs.
7.6279 €
*incl. VAT plus shipping costs
**Subject to prior sale

Circular connector with screw lock, type Amphenol C 091 D.

With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Seal material: Neoprene. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 67/65. Operating temperatures: –40 to +100 °C. Certification: UL.

Female panel mount connectors, with ring nut fastener, type C 091 D.

Front mounting with screw lock.

Technical attributes (type, number of poles, rated voltage, insertion/removal force): C 091 31N006 100 2, 6-pole, 300 V AC/DC, 50 N

Technical specifications
Ausführung DIN-Einbaubuchse
Bestückung bestückt
Gehäusematerial Zinkdruckguss
Kontaktanschluss Lötkelch
Kontaktoberfläche versilbert
Leiterquerschnitt 0,5 mm²
Montage Panelmontage
Orientierung gerade
Polzahl 6-polig
Verriegelung Schraubverriegelung
Logistics
Ursprungsland CN
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
Substanz Beschreibung Blei
