C091 31W105 100 2 | Amphenol
Panel plug, 5 pole, solder cup, screw locking, straight, C091 31W105 100 2
Unit Price (€ / pc.)
7.6517 € *
Available: 0 pcs.
Leadtime: On Request **
Circular connector with screw lock, type Amphenol C 091 D.
With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Seal material: Neoprene. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 67/65. Operating temperatures: –40 to +100 °C. Certification: UL.

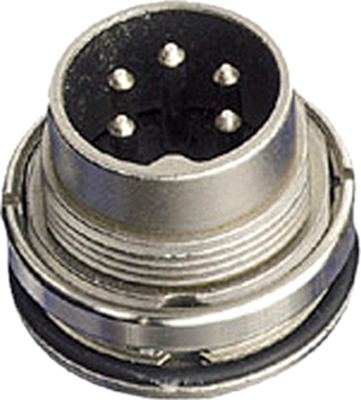

Male receptacles, with ring nut fastener, type C 091 D.
Front mounting with screw lock.

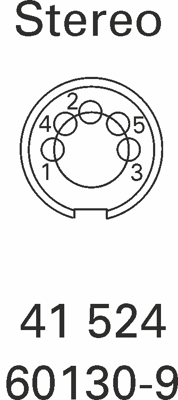

Technical attributes (type, number of poles, rated voltage, insertion/removal force): C 091 31W105 100 2, 5-pole, stereo, 100 V AC/DC, 35 N
Technical specifications
| Ausführung | DIN-Einbaustecker | |
| Bestückung | bestückt | |
| Gehäusematerial | Zinkdruckguss | |
| Kontaktanschluss | Lötkelch | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 0,5 mm² | |
| Montage | Panelmontage | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
