T 3360 001 | Amphenol

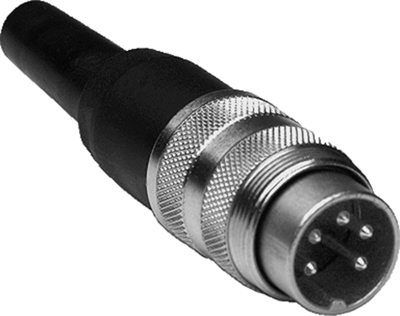

Plug, 5 pole, solder cup, screw locking, straight, T 3360 001
Unit Price (€ / pc.)
10.5196 € *
Available: 8 pcs.
Next delivery: 12 pcs. on 2025-06-04
Leadtime: 1 Week **
Total Price:
10.52 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5196 €
5 pcs.
9.6747 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector with screw lock, type Amphenol C 091 A.
With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 40. Operating temperatures: - 40 to +100 °C. Certification: UL.
Male cable connectors, straight, for cable diameters from 4.0 to 6.0 mm, type C 091 A.
Technical attributes (type, number of poles, rated voltage, insertion/removal force): T 3360 001, 5-pole, 300 V AC/DC, 35 N
Technical specifications
| Version | DIN-Stecker | |
| Additional parts | bestückt | |
| Shell Material | Zinkdruckguss | |
| Cable diameter | 4 bis 6 mm | |
| Contact connection | Lötkelch | |
| contact surface | versilbert | |
| Cable cross-section | 0,5 mm² | |
| Assembly | Kabelmontage | |
| Orientation | gerade | |
| Pin number | 5-polig | |
| Type of locking | Schraubverriegelung |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
