T 3400 001 | Amphenol

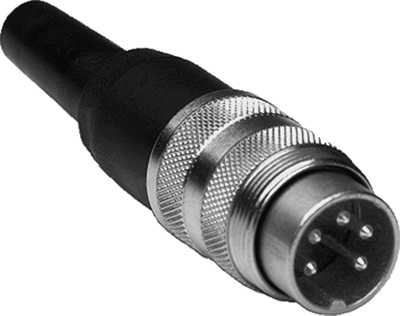

Plug, 6 pole, solder cup, screw locking, straight, T 3400 001
Unit Price (€ / pc.)
11.8881 € *
Available: 3 pcs.
Leadtime: On Request **
Total Price:
11.89 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8881 €
10 pcs.
10.4720 €
50 pcs.
9.7461 €
150 pcs.
9.3296 €
500 pcs.
8.8298 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector with screw lock, type Amphenol C 091 A.
With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 40. Operating temperatures: - 40 to +100 °C. Certification: UL.
Male cable connectors, straight, for cable diameters from 4.0 to 6.0 mm, type C 091 A.
Technical attributes (type, number of poles, rated voltage, insertion/removal force): T 3400 001, 6-pole, 300 V AC/DC, 50 N
Technical specifications
| Ausführung | DIN-Stecker | |
| Bestückung | bestückt | |
| Gehäusematerial | Zinkdruckguss | |
| Kabeldurchmesser | 4 bis 6 mm | |
| Kontaktanschluss | Lötkelch | |
| Kontaktoberfläche | versilbert | |
| Leiterquerschnitt | 0,5 mm² | |
| Montage | Kabelmontage | |
| Orientierung | gerade | |
| Polzahl | 6-polig | |
| Verriegelung | Schraubverriegelung |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
