T 3484 001 | Amphenol

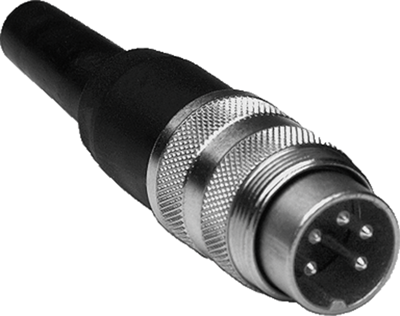

Plug, 7 pole, solder cup, screw locking, straight, T 3484 001
Unit Price (€ / pc.)
13.1376 € *
Available: 0 pcs.
Leadtime: 14 Weeks **
Total Price:
13.14 € *
Price list
Quantity
Price per unit*
1 pcs.
13.1376 €
10 pcs.
12.2213 €
50 pcs.
11.2455 €
100 pcs.
10.2340 €
*incl. VAT plus shipping costs
**Subject to prior sale
Circular connector with screw lock, type Amphenol C 091 A.

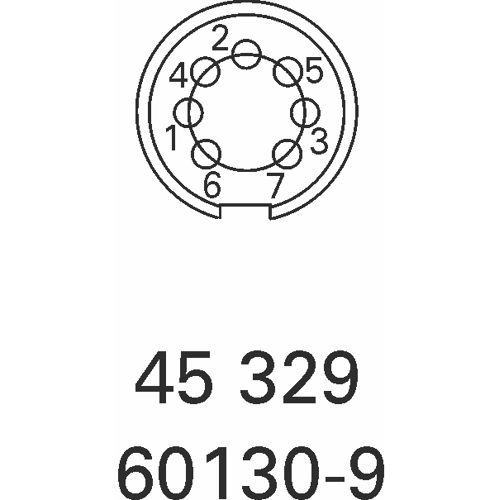

With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 40. Operating temperatures: - 40 to +100 °C. Certification: UL.

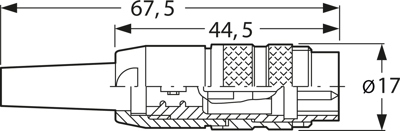

Male cable connectors, straight, for cable diameters from 4.0 to 6.0 mm, type C 091 A.
Technical attributes (type, number of poles, rated voltage, insertion/removal force): T 3484 001, 7-pole, 100 V AC/DC, 55 N
Technical specifications
| Version | DIN-Stecker | |
| Cable cross-section | 0,5 mm² | |
| Pin number | 7-polig | |
| Orientation | gerade | |
| Contact connection | Lötkelch | |
| Type of locking | Schraubverriegelung | |
| Cable diameter | 6 bis 10 mm | |
| Assembly | Kabelmontage | |
| Additional parts | bestückt | |
| contact surface | versilbert | |
| Shell Material | Zinkdruckguss |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
