PR96 0/4-20MA | AMS

Display instrument, PR96 0/4-20MA

Order No.: 19K580
EAN: 4099891453831
MPN:
PR96 0/4-20MA
Series: PR96
AMS
PR96 0/4-20MA AMS Current Meter Image 1
PR96 0/4-20MA AMS Current Meter Image 2
Image may differ
Print
Key Specification:
Max. current 2 A
AC or DC measurement possible AC

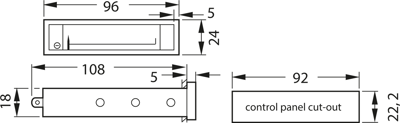

Width 96 mm
Height 24 mm

Ordering Information:

Supplied with scale from 0 to 100 % in landscape format (installed) and scale from 0 to 100 % in portrait format
Download Datasheet Technical specifications
Unit Price (€ / pc.)
108.5637 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Add to Cart
Total Price:
108.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
108.5637 €
Description
Technical specifications
Download
Logistics
Compliance

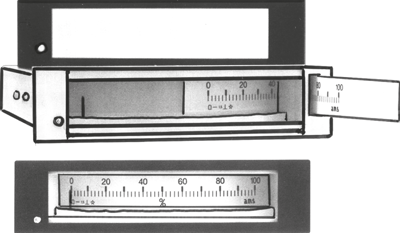

Display instruments with removable scale, type AMS Pr 96 x 24/W.

For horizontal or vertical mounting. Easy scale change in built-in state. Class 1.5 flat-profile moving-coil instrument with a 96 x 24 mm bezel. For DC current and voltage. Supplied with a horizontal format scale 0 to 100 %. Also included in the

Type: 0 to 20 mA and 4.0 to 20 mA, DC
Technical specifications
AC or DC measurement possible AC
Connection screw connection
Width 96 mm
Height 24 mm
Max. current 2 A
Assembly snap-in
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 90303370
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
